Handlebar Ducati JST Sealed Automotive Electrical Connectors JST-08T-JWPF-VSLE 8 Way
JST-08T-JWPF-VSLE 8 Way Handlebar Ducati JST Sealed Connector
Description
8 Way Handlebar Ducati JST Sealed Connector
Pitch Spacing : 2mm
Height : 12.1 mm
Length : 25.8 mm
Width : 11 mm
Connector series: JWPF
Mating parts: JST-08R-JWPF-VSLE
These Ducati 8 Way connectors are the OEM part used on the main wiring looms of various Ducati's.
These JWPF connectors feature spring action housing-to-terminal locks with internal lances or terminal locks built into the housing to retain the contacts.
Specification
|
Item name |
JST-08T-JWPF-VSLE 8 Way Handlebar Ducati JST Sealed Connector |
| P/N | JST-08T-JWPF-VSLE |
|
Wire Size |
22-26AWG |
|
Operating Temperature range |
-55℃~85℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
8 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 8 way |
| Color | White |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

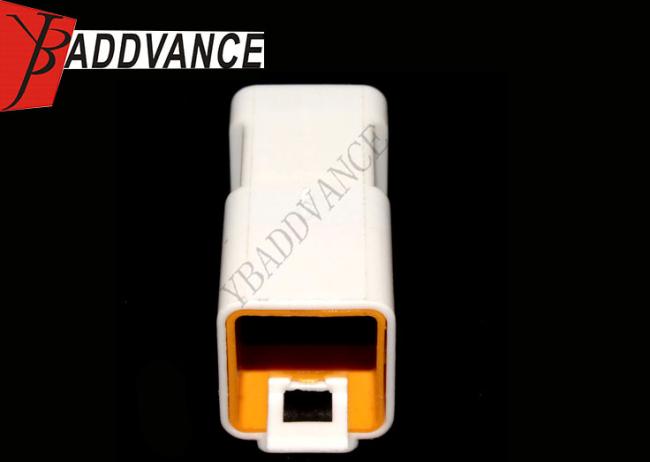

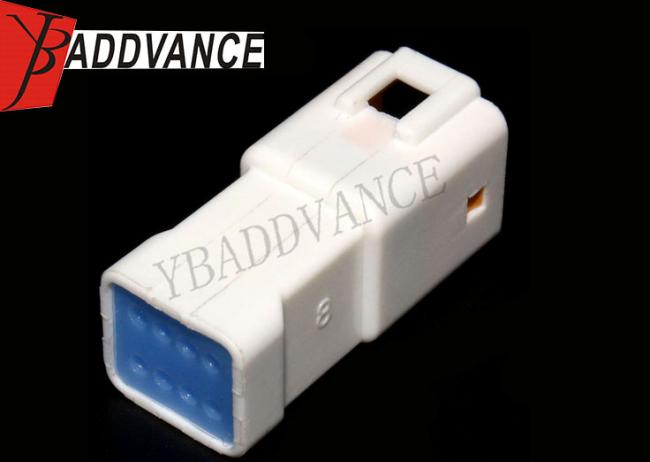

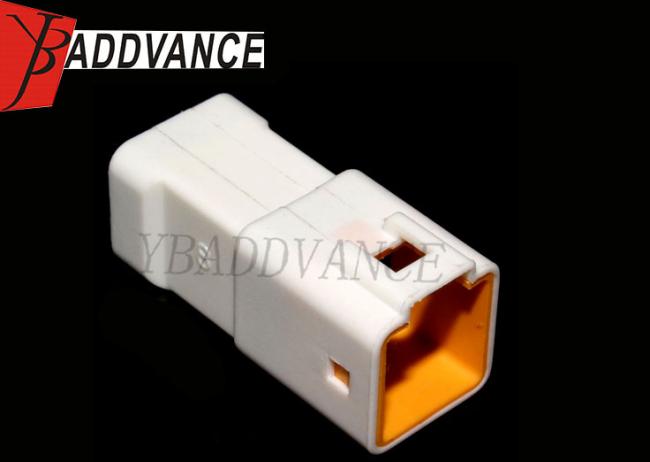

Product Picture Details
