6189-0193 3 Way Female Connector / Jet Motor Sumitomo Automotive Connectors
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6189-0193 3 Way Female Waterproof Sumitomo Jet Motor Connector
Description
3 Way Female Waterproof Sumitomo Jet Motor Connector
It is used for T oyota
Number of Row: 1
Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
The bellowing payment methods are accepted: T/T, Western Union, Paypal, credit card
Specification
|
Item name |
6189-0193 3 Way Female Waterproof Sumitomo Jet Motor Connector |
| P/N | 6189-0193 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

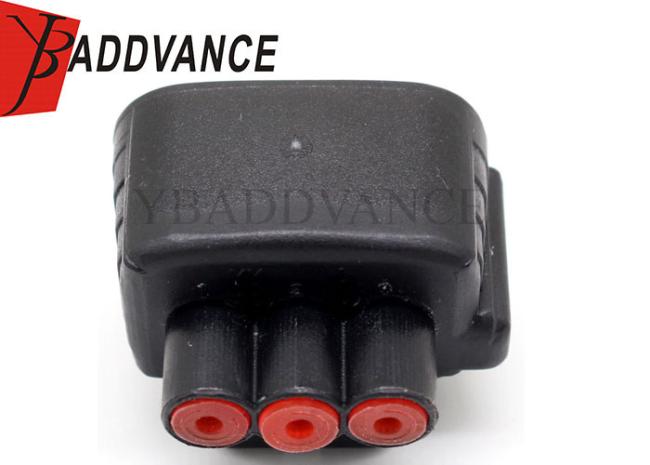

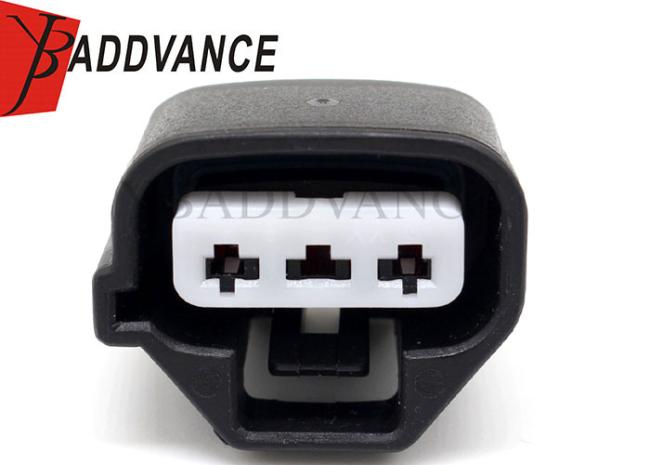

Product Picture Details
