EVO Wiper Motor Sumitomo Sealed Connectors 6189-0504 90980-11599 5 Way
Price:
Negotiation
MOQ:
100 units
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
6189-0504 90980-11599 5 Way EVO Wiper Motor Sumitomo 090 Connector
Description
5 Way EVO Wiper Motor Sumitomo 090 ConnectorIt is used for T oyota
Height : 26.2mm
Width : 28 mm
Length : 24 mm
Color: GREY
Tab size(mm): 2.3mm(090)
Operating Temperature range:-40℃~120℃
Specification
|
Item name |
6189-0504 90980-11599 5 Way EVO Wiper Motor Sumitomo 090 Connector |
| P/N | 6189-0504 90980-11599 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
5 pin waterproof Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 5 way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automotive Motorcycles |

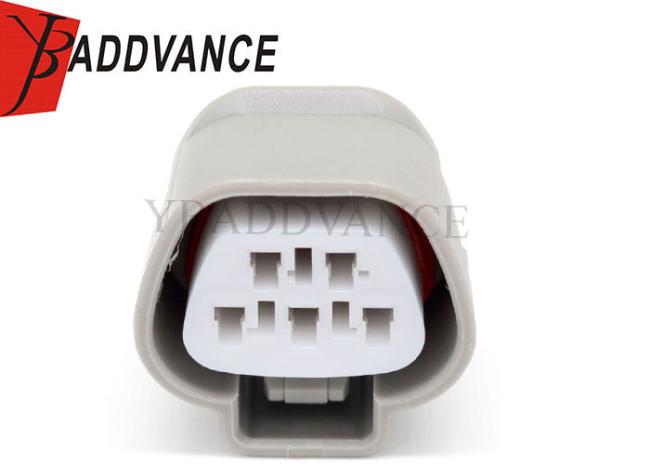

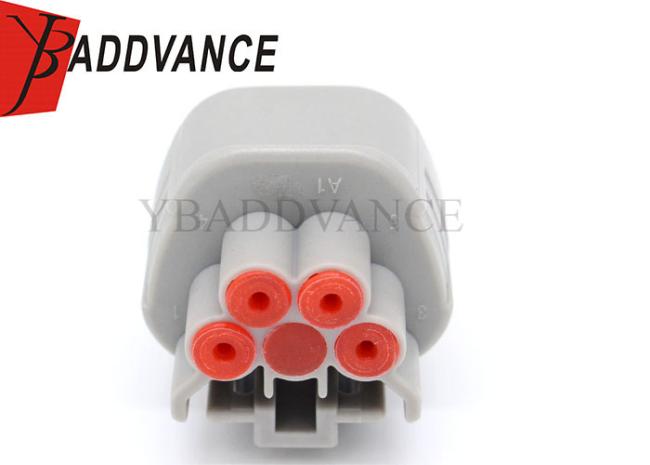

Product Picture Details
