2 Pin Auto Wiring Harness EV6 Female Injector Adaptor PBT / PA66 Material

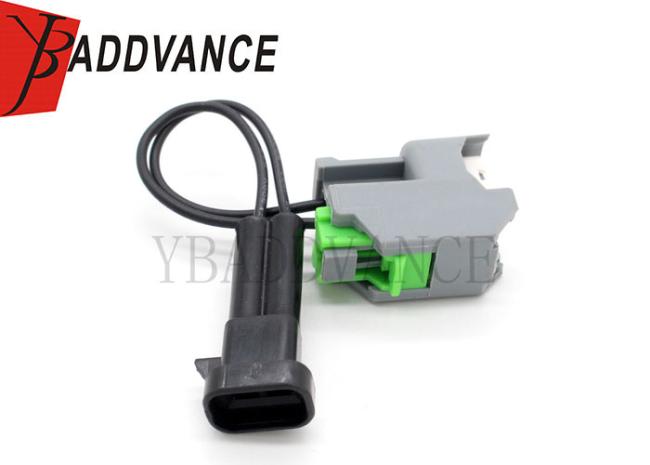

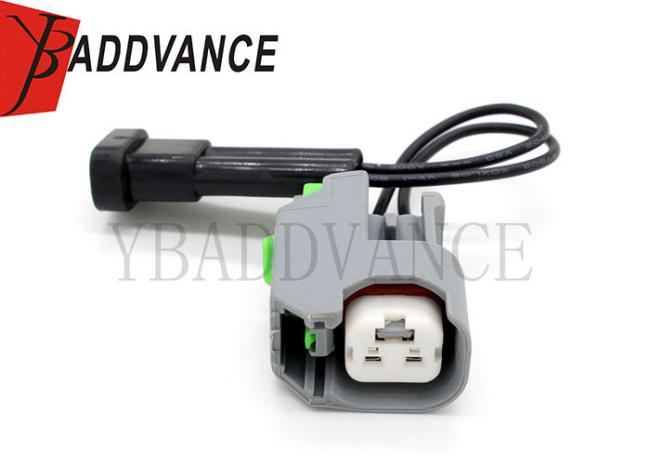

2 Pin Wire Harness EV6 (Female) Injector Adaptor To MINI Multec II (Male)
Description
2 Pin Wire Harness EV1 (Female) Injector Adaptor To MINI Multec II (Male)
Number of Row : 1 Row
Number of Pins: 2 Position
Use this adapter if your wiring harness fits EV1 (Standard Bosch-type) fuel injectors with the rectangle connector and your new injectors are Denso or Bosch injectors with the Sumitomo connector - an oval connector with side-guides and a notch-and-lock on the top and bottom.
Works with any Honda OBD 1, most RC, Precision, Ford, etc. aftermarket injectors
Many high performance fuel injectors use the EV1 connector including Bosch, Ford, RC, Precision, Multecs and more.
If planning on using the OEM Honda OBD-1 injectors, you will need to trim the ridges in the corners of the injectors. The other common injectors are plug and play.
Specification
|
Item name |
2 Pin Wire Harness EV6 (Female) Injector Adaptor To MINI Multec II (Male) |
| P/N | BC7050 |
|
Wire Size |
18-22AWG |
|
Wire Length |
11 CM |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| words |
automotive wiring harness connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | For Toyota, Mazda, Subaru, Mitsubishi, Hyundai, Nissan |
Related Products
| Products | Description | P/N |
| wire harness | EV1 Bosh Jetronic (female) to EV6 US CAR (male) | BC7040 |
| wire harness | OBD2 to OBD1 EV1 | BC7076 |
| wire harness | BD2 to EV1 EV14 | BC70426 |
| wire harness | EV1 OBD2 To OBD1 Male Female | BC7076 |
| wire harness | 2 Pin Bosh OBD2 Male To Female | BC7428 |
| wire harness | 6 Pin Denso Male To VDO Female | BC7489 |
| wire harness | EV1 Female to Sumitomo (Denso) Male | BC7043 |
| wire harness | HON2 OBD2 (female) to Denso Male | BC7802 |
| wire harness | SSD 050 Series 3 Pin Male Female | BC71132P |
| wire harness | USCAR EV6 Female To OBD1 Male | BC7809 |
