Rectangular Deutsch Automotive Connectors 4 Way Female DT Connector Housing DT06-4S-CE01
Deutsch Rectangular 4 Way Female DT Connector Housing With Short Cap DT06-4S-CE01
Product Description

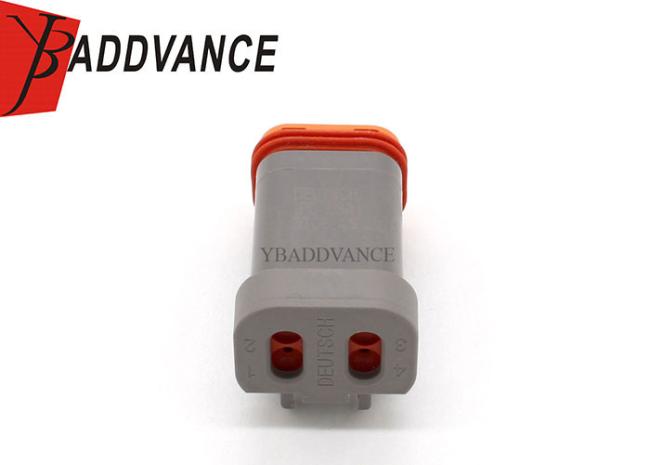

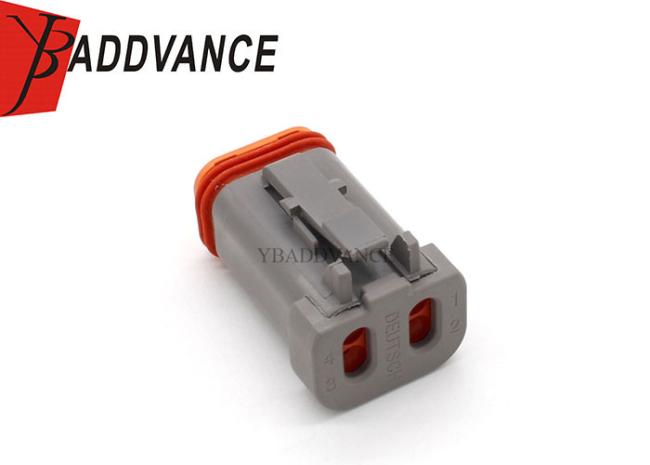

Deutsch Rectangular 4 Way Female DT Connector Housing With Short Cap
The following is showed this kinds of connector will come with which parts together.
1 x female connector housing
1 x orange wedge
4 x female terminals
Mating Pin Diameter : 1.59 mm [ .0625 in ]
Connector System : Wire-to-Wire
Number of Positions : 4
Centerline (Pitch) : 4.45 mm [ .175 in ]
Specification
| Keywords | Sealed Connector |
| Part Number | DT06-4S-CE01 |
| Male or Female | Female |
|
Flange/In-line/PCB Mount
|
In-line |
| Modification | Reduced Dia. Seals, End Cap |
| Shape | Rectangular |
| Material | Plastic |
| Insulation | .053-.120 [1.35-3.05] |
| Connector System | Wire-to-Wire |
| Wire Size | 14, 16, 18, 20 awg |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 2.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to United States,Canada,Italy,Latvia,Netherlands,Germany,Norway, Poland, Finland, Spain, UK, France,
Russia,Brazil, Mexico, Australia, New zealand,Japan, Korea, Thailand, Indonesia, Malaysia,Singapore,and many other countries.
More Connector
| Amp Tyco Connector | Description | Fit For |
| 8E0972416 | 16 pin female | For VW Audi |
BC7039 |
6 pin female | For Truck |
| 770680-1 | 23 pin male | |
| 776231-1 | 35 pin male Straight | For Truck Bus |
| 1-1718806-1 | 5 pin female | |
| 368537-1 | 12 pin male | |
| 5273338 | 12 pin female 1.5K Series | |
| 179678-6 | 16 pin female |
