776524-1 4 Pin Te Connectivity Automotive Connectors 18 - 20AWG Mates With 776536-1
Price:
negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

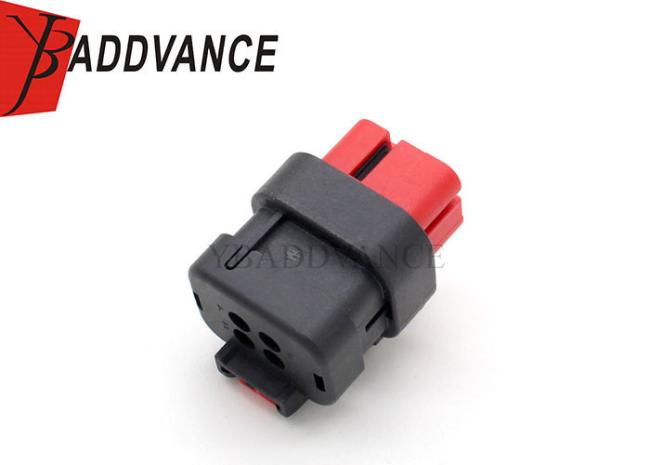

776524-1 4 Pin TE Connectivity Amp 16 Series Connectors 18-20AWG Mates with 776536-1
Description
776524-1 4 Pin TE Connectivity Amp 16 Series Connectors 18-20AWG Mates with 776536-1
This part come with the following types:
Mounting Type : Cable Mount
Gender : Female
Colour : Red
Height : 26.8mm
Housing Material : Glass Fibre Reinforced PBT
Width : 25.33mm
Depth : 39.95mm
Number Of Rows : 2
Series : AMPSEAL 16
Number Of Contacts : 4
Type : Automotive connector housing
Rohs : RoHS Certificate of Compliance
Specification
| Number of Positions | 4 Pin |
| Original number | 776524-1 |
| Material | Housing:PBT+G,PA66+GF;Terminal:Copper Alloy/Brass/Phosphor Bronze. |
| Product Name | 4 Pin TE Connectivity Amp 16 Series Connectors |
| Male/Female | Female |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-20AWG |
| Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Resistor | 120 Ohm |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Hot products
| AMP TE Connector | Pin number | Gender | Color |
| 776524-1 | 4 Pin | Female connector | Black+red |
| 1-929346-1 | 12 Pin | Male connector | Black |
| 1-967167-3 | 3 Pin | Male connector | Black |
| 776433-1 | 6 Pin | Female connector | Black+red |
| 1-967642-1 | 3 Pin | Female connector | Black |
| 1-967640-1 | 4 Pin | Female connector | Black |
| 776523-1 | 3 Pin | Female connector | Black+red |
| So on.. | ... | ... | ... |
