Unsealed 6520-0550 2.3mm Sumitomo Automotive Connectors
Price:
negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

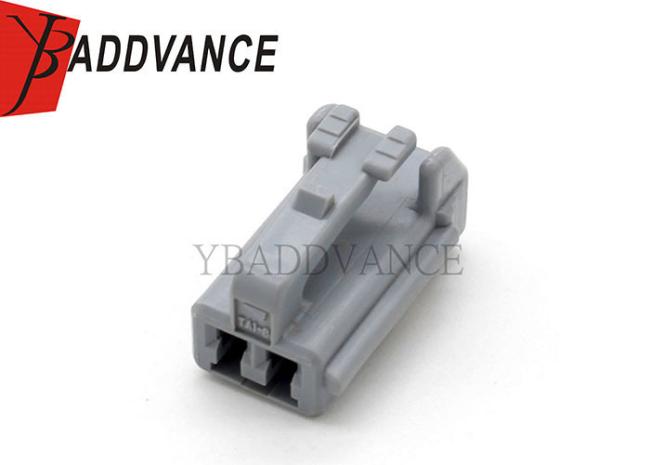

Sumitomo TS Series Unsealed 6520-0550 2 Pin Female 2.3mm(090) Connector
Description
Sumitomo TS Series Unsealed 2 Pin Female 2.3mm(090) Connector
This part come with the following types:
Original number:6520-0550
Pin n/p: 2 pin
Gender:Female
Material :Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy, Brass, Phosphor Bronze.
Color:Gray
Application:For Car
Specification
| Product Name | 2 Pin Female 2.3mm(090) Connector |
| Delivery Time | About 3-7 days |
| Way | 2 Way |
| Wire Size | 16-22AWG |
| P/N | 6520-0550 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
Hot products
| Sumitomo Connector | Pin number | Gender | Application |
| 6189-0647 | 4 Pin | Female | For T-PRS-Switch |
| 6189-7396 / 90980-12A88 | 1 Pin | Female | For Lexus Toyota |
| 6195-0038 | 8 Pin | DL 090 Female | |
| 6187-2171 | 2 Pin | Female | For Automotive |
| 6189-0134 6918-0332 | 8 Pin | HW 090 Female | |
| So on.. | ... | ... | ... |
| Deutsch Connector | Pin number | Gender | |
| DTM06-3S-E007 | 3 Pin | Female connector | |
| DTM06-2S-EE03 | 2 Pin | Female connector | |
| DT04-8P | 8 Pin | Male connector | |
| DTM04-12P | 12 Pin | Male connector | |
| So on.. | ... | ... | ... |
About Company
Congratulations! You've fouind the professional supplier in China
We specialized in manufacturing electrical connectors .Our facility is also capable of makeing wiring harness.
We strongly stress on makeing only highest quality connector . Our connector brands are available for Sumitomo , ,Yazaki,Tyco AMP , Bosch ,Furukawa,Deutsch, And so on ...
Our objective is to provide the highest quality parts for reasonable price .We also make sure to have quick turnaround time to complete your order
Our Workshop
The following picture is a part of our workshop.
Welcome to visit our factory
More details about pictures
