6185-1173 Sumitomo 6 Pin Tail Lamp Connector For N-issan

Price Negotiable

Price: negotiation

MOQ: 100 UNITS

Delivery Time: About 5-8 work days

Brand: YBADDVANCE

Product Description

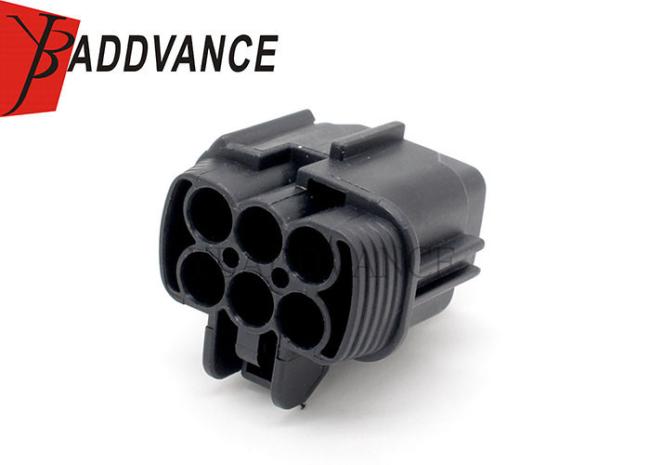

6185-1173 Sumitomo 6 Pin Female Waterproof Tail Lamp Connector For N-issan

Description

This part come with the following types:

Product Type: Connector
Min Order Qty: 1 unit
Connector ID Part Number: CID7069-2.2-21
Brand Equivalent: YBADDVANCE
Original Mfr Part Number: 6185-1173
Number of Cavities: 6
Product Family: RS 090 (2.3mm)
Sealed/Unsealed: Sealed
Gender: Female
Color: Black
Terminal Position Assurance: Included

Application:For N-issan

Specification

Product Name	6 Pin Female Waterproof Tail Lamp Connector
Delivery Time	About 3-7 days
Way	6 Way
Wire Size	16-22AWG
P/N	6185-1173
Gender	Female
MOQ	100 units/lot
Sealed/Unsealed	Sealed
Color	Black
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design Ability	Please send us drawing or samples to design OEM&ODM
Operating Temperature range	-40~120
Contact resistance	Initial8m Max.after durability tests16m Ma
Leak current	Initial50kPa Min.after durability tests30kPa Min.
Insulation resistance	100MΩ Min.
Including	Connector housing,terminals,rubber seals
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Material	PBT,Plastic PA66,pbt gf30 and so on...

Hot products

Sumitomo Connector	Pin number	Gender	Application
6189-0647	4 Pin	Female	For T-PRS-Switch
6189-7396 / 90980-12A88	1 Pin	Female	For Lexus Toyota
6195-0038	8 Pin	DL 090 Female
6187-2171	2 Pin	Female	For Automotive
6189-0134 6918-0332	8 Pin	HW 090 Female
So on..	...	...	...
Deutsch Connector	Pin number	Gender
DTM06-3S-E007	3 Pin	Female connector
DTM06-2S-EE03	2 Pin	Female connector
DT04-8P	8 Pin	Male connector
DTM04-12P	12 Pin	Male connector
So on..	...	...	...
