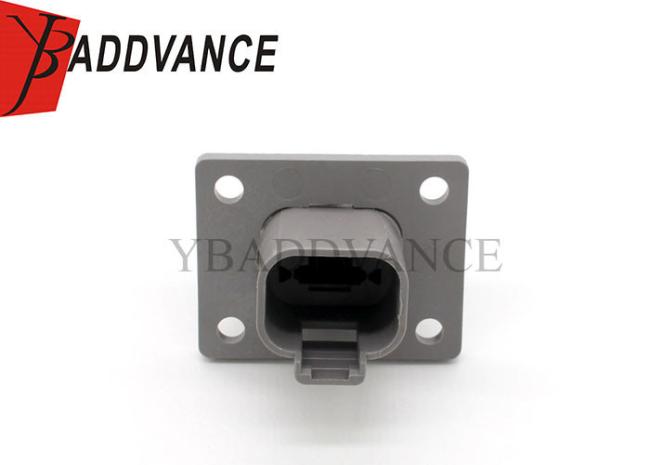

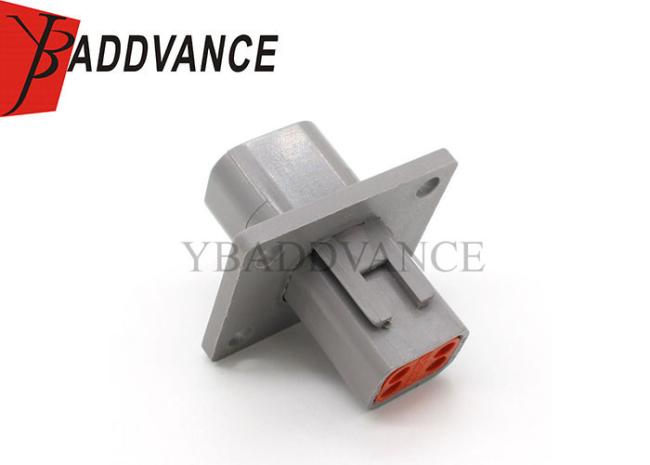

Deutsch DT04-4P-L012 4 Pin Male Flange Mount Connector
Price:
negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
Deutsch DT04-4P-L012 4 Pin Male Mounting Flange Connector
Description
This part come with the following types:
Brand: YBADDVANCE
Product: Connectors
Number of Positions: 4 Position
Gender: Plug (Male)
Mounting Style: Free Hanging
Wire Gauge Range: 20 AWG to 14 AWG
Series: DT
Color: Gray
Current Rating: 13 A
Dimensions: 19.71 mm x 37.21 mm x 30.91 mm
Height: 37.21 mm
Length: 30.91 mm
Material: Plastic
Specification
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Wire Size | 16-22AWG |
| P/N | DT04-4P-L012 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Product Name | 4 Pin Male Mounting Flange Connector |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 4 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Hot products
| TE Connector | Gender | Pin number |
| 0-2112986-1 A | Female Connector | 2 Pin |
| 0-2112986-2 A | Female Connector | 2 Pin |
| 0-2236114-1 B | Female Connector | 2 Pin |
| 1-1924067-4 | Female Connector | 2 Pin |
| 1-2296694-3 | Female connector | 2 Pin |
| 1-1924067-6 | Female Connector | 2 Pin |
| 2-2112986-5 A | Female Connector | 2 Pin |
| So on.. | ... | ... |
