DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention
Price:
Negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description

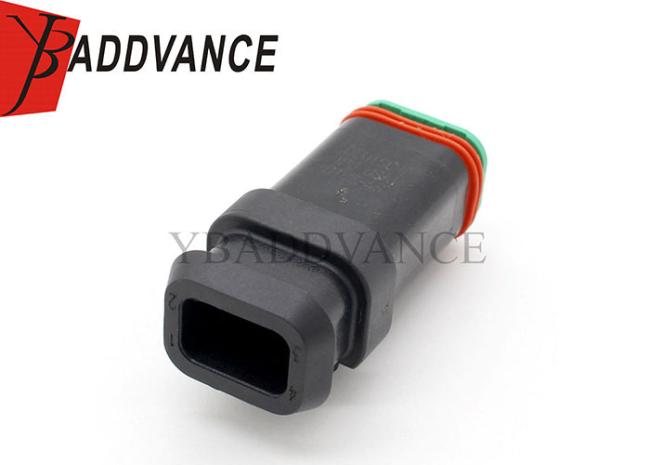

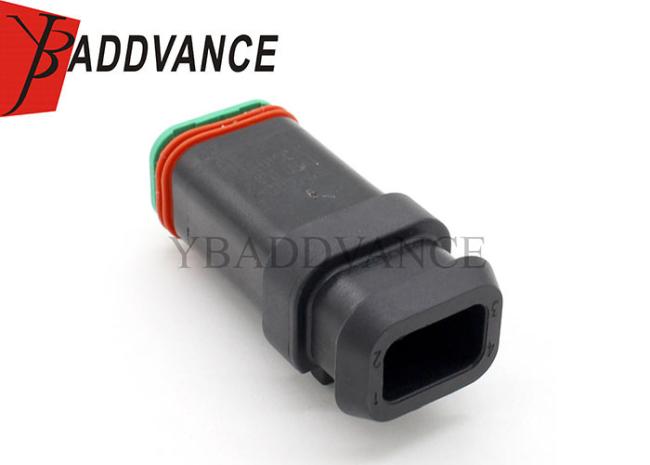

DT06-4S-EP11 Deutsch Enhanced Seal Retention 4 Pin Female Connector
Description of Product
DT06-4S-EP11 Deutsch Enhanced Seal Retention 4 Pin Female Connector
Including:
connector housing * 1
grommet * 1
wedge * 1
Connector & Housing Type : Housing for Female Terminals
Mating Pin Diameter : 1.59 mm [ .063 in ]
Connector System : Wire-to-Wire
Number of Positions : 4
Centerline (Pitch) : 4.45 mm [ .175 in ]
Specification
| Keywords | 4 Pin Connector |
| Part Number | DT06-4S-EP11 |
| Sealed/Unsealed | sealed |
| Male/Female | female |
| Material | PBT PA66 |
| Way | 4 way |
| MOQ | 100 units/lot |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal | Initial |
| Mating Pin Diameter | 1.59 mm [ .063 in ] |
| Housing Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Housing Socket,terminals,seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | CANADA,ITALY,Germany,Finland,UK,USA, and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
