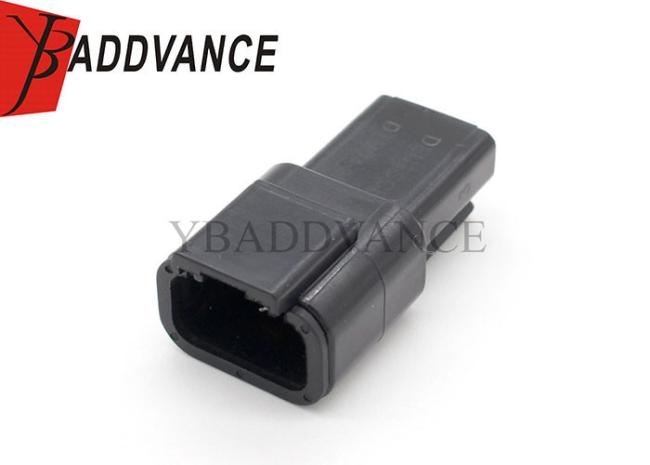

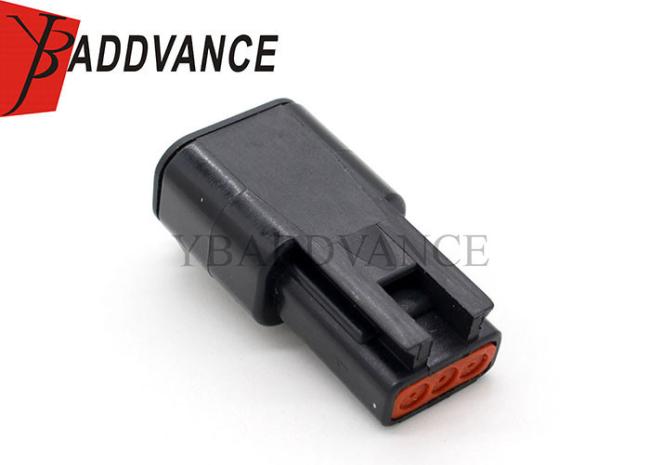

DTM04-3P-E004 Deutsch Automotive Connectors 3 Pin Receptacle Black Color
DTM04-3P-E004 Deutsch DTM Series 3 Pin Receptacle Black Color
Specification
| Sealed/Unsealed | Sealed |
| Color | Black |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| P/N | DTM04-3P-E004 |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Product Name | Deutsch DTM Series 3 Pin Receptacle Black Color |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Way | 3 Way |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Gender | Male |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
DTM04-3P-E004 Deutsch DTM Series 3 Pin Receptacle Black Color
This part come with the following types:
Brand: YBADDVANCE
TE Internal : DTM04-3P-E004
TE Internal Description: REC, 3P, BLK, N
Alias #:ZPF000000000130200
All DEUTSCH DTM HOUSINGS (86)
Connector & Housing Type : Housing for Male Terminals
Mating Pin Diameter : 1.02 mm [ .04 in ]
Connector System : Wire-to-Wire
Number of Positions : 3
Centerline (Pitch) : 4.19 mm [ .165 in ]
Sealable : Yes
Application:For Truck
Hot products
| TE Connector | Gender | Pin number |
| 0-2112986-1 A | Female Connector | 2 Pin |
| 0-2112986-2 A | Female Connector | 2 Pin |
| 0-2236114-1 B | Female Connector | 2 Pin |
| 1-1924067-4 | Female Connector | 2 Pin |
| 1-2296694-3 | Female connector | 2 Pin |
| 1-1924067-6 | Female Connector | 2 Pin |
| 2-2112986-5 A | Female Connector | 2 Pin |
| So on.. | ... | ... |
