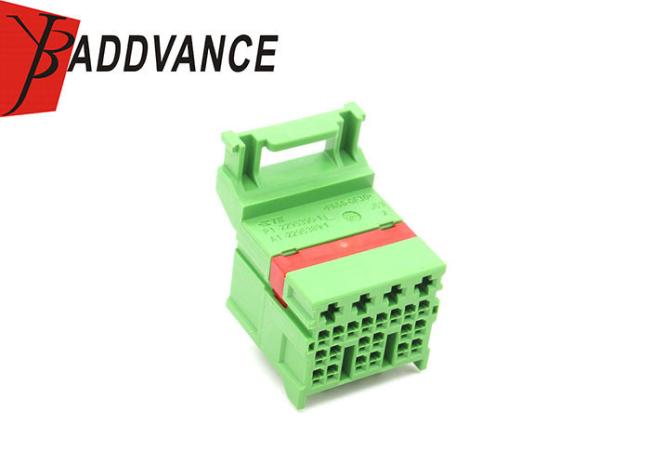

2295390-1 TE Automotive Electrical Connectors Green 24 Pin Female
Price:
negotiation
MOQ:
100 UNITS
Delivery Time:
About 5-8 work days
Brand:
YBADDVANCE
Product Description
2295390-1 24 Pin Female TE Automotive Electrical Connectors
Description
2295390-1 24 Pin Female TE Automotive Electrical Connectors
This part come with the following types:
Connector: Gray male connector housing
Number of Positions:24 Position
Seals: 24 rubber seals
Included: socket
Terminal:24 female
Allowable Current(Ref.) 10A(Ref)
Low Level Contact Resistance 3milli ohm Max.(Initial)
Insulation Resistance 100Megohm Min.(at 500VDC)
Withstanding Voltage 1000V AC (1min.)
Temperature Range*9 -40 to 100deg.C
Number of Rows:4 Row
Specification
| Product Name | Automotive Electrical Connectors |
| Delivery Time | About 3-7 days |
| Way | 24 Way |
| Wire Size | 16-22AWG |
| P/N | 2295390-1 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Green |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Hot products
| AMP Connector | Gender | Pin number |
| 4-1437290-0 | Female Connector | 34 Pin |
| 282087-1 | Female Connector | 3 Pin |
| 174352-2 | Female Connector | 2 Pin |
| 1-1418390-1 | Female Connector | 4 Pin |
| 2005210-2 | Female Connector | 68 Pin |
| 174877-2 / 174352-2 | Female connector | 1 Pin |
| So on.. | ... | ... |
