Triple Layers Support Bracket For Busbar Flame Resistant Nylon PA66

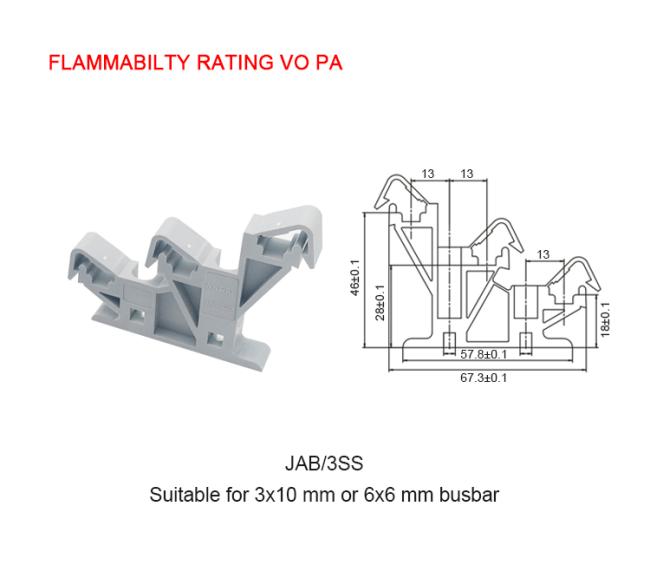

JAB/3SS Nylon 66 Busbar Holder for Installed AKG Busbar Terminal Block Connector
1. DESCRIPTION
Nylon 66 Busbar Holder are mounted on the ends of busbar. An assembled modular block to prevent the busbar terminal blocks from ungredicted movements.
JAB/3SS Busbar Holder can fixed the copper busbar.

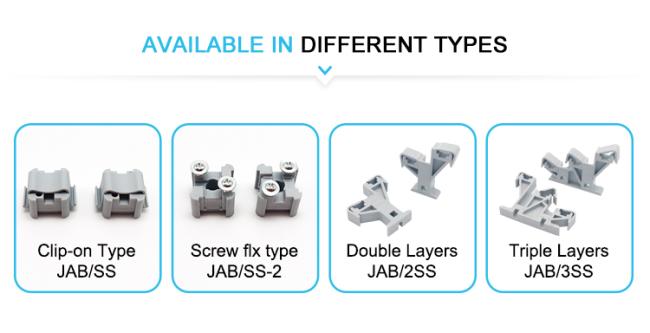

Two different types busbar holder available.
Universal terminal fixture.
Reliable and safe connection.
Safe and stable performance.
Made from safe and high quality material.
Easy mounting and dismounting from busbar.
Our terminal blocks are preferably used in electrical machine control systems.
All types of materials are guaranteed in quality.
2.TECHNICAL PARAMETERS
| Model Number | JAB/3SS Busbar Holder |
| Color | Grey |
| Used for |
3*10 mm or 6*6 mm Busbar |
| Connection method | Screw |
| Material | V0 Flame resistant Nylon66 / PA66 |
| Standard | IEC 60947-7-1 |
| LOGO | WKDQ,Customized logo are supported |
| Packing Detail | 100PCS/BAG |
| Certification | CE/RoHS/CQC/ISO 9001 |
-
