Welding Cable Plug Socket Connector Waterproof IP68 Wk11 Docking Threaded Bayonet
WK11 Welding Cable Waterproof Docking Connector
WK11 Series Waterproof Cable Connector Plug and Socket, outdoor waterproof IP68, widely used in various machine tools, locomotives, electricity, post and telecommunications, communications, navigation, instrumentation, lighting systems, medical and oil exploration and other fields.

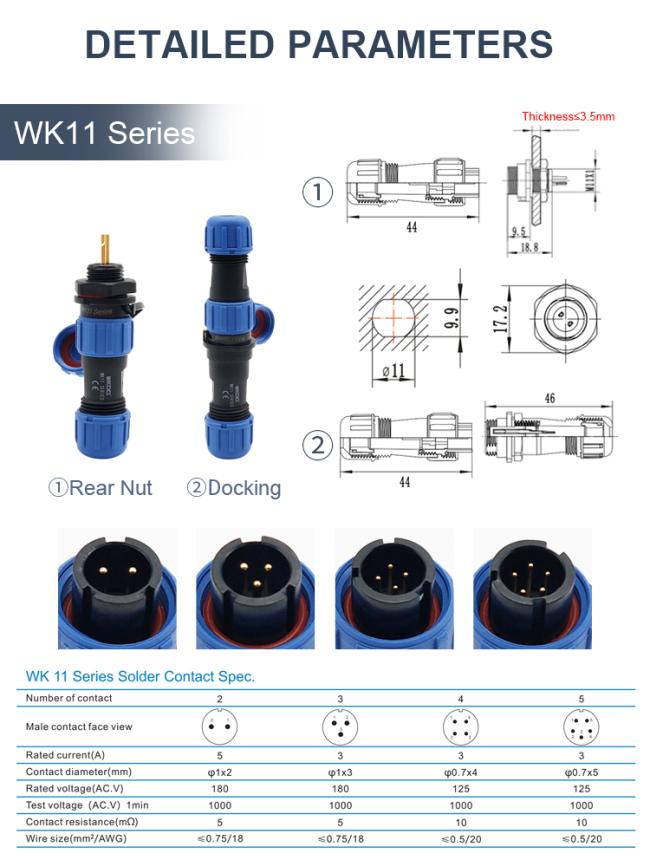

The WK11 is the smallest of the WK Series, a group of watertight IP68-rated products that guarantee total sealing from all environmental elements including particles and liquids. It has a PA66 nylon outer shell and 2 to 5 gold-plated contacts.
| Coupling | Threaded Coupling |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Insert material | PPS, max temperature 260 ℃ |
| Contact material | Brass with gold plating |
| Termination | Solder |

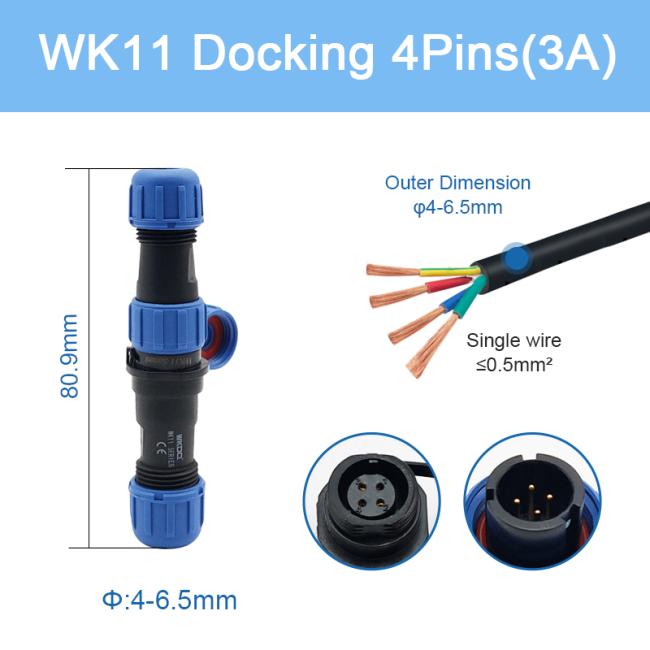

| Cable outer diameter range | 4-6.5mm |
| IP rating | IP68 |
| Mating cycle | 500 |
| Temperature range | -40℃ ~ + 85℃ |
| Insulation resistance | 2000 M Ω |
FAQ
Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
