JUK 5TWIN Din Rail Screw Terminal Block Brass And Steel Metal Material

1. DESCRIPTION

    Twin Screw Terminal Blocks offer a space-saving alternative to standard feed through terminal blocks allowing for high density wiring. Multiple connections are led to one terminal block. It accomplishes this without any additional terminal blocks or bridging.

   The twin terminal blocks allow three wires to be connected to one potential and can therefore be used as compact power distributors.

   Easy to operate.

   Double in and double out terminals.

   Long durable time.

   Corrosion-proof contact point.

   Comprehensive range of accessories: Plug-in bridges, marking strips, marking holder.

   All types of materials are guaranteed in quality.

   Made from engineering nylon PA66,corrosion proof metals.

   With generously sized surface areas for labeling. The contents can be printed.

   It can connect two conductors with ease, even large conductor cross sections are not a problem.

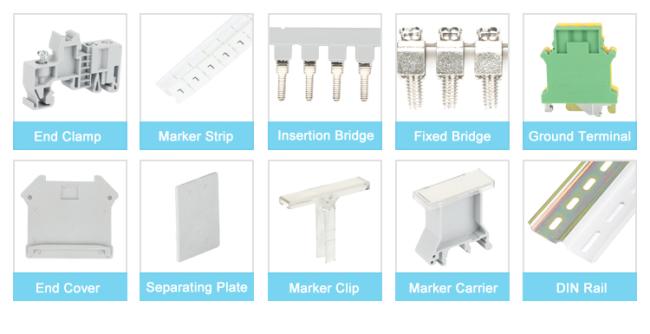

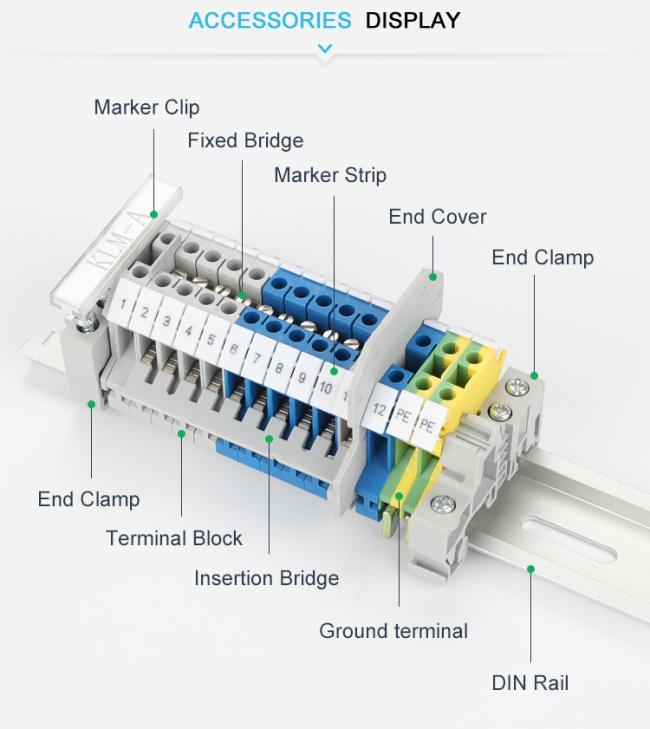

   Full range of accessories: End plates, End ,Brackets, Partition plates, marking trips, bridges, etc.

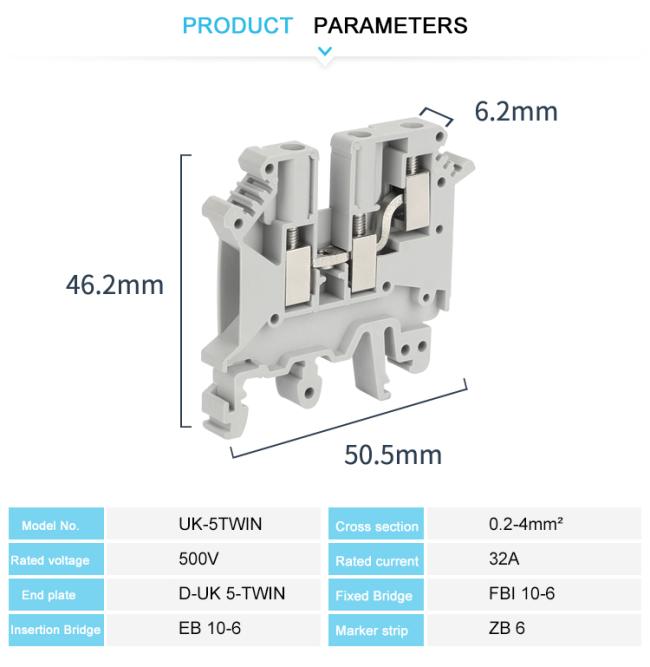

2.TECHNICAL PARAMETER
