JUKH 95 Electric Screw Terminal Block Best Din Rail And High Voltage Installation
JUKH 95 DIN Rail High Current Terminal Block
JUKH 95 Best Din Rail And High Voltage Installation Electric Screw Terminal Block
1. DESCRIPTION
The JUKH High current terminal blocks offer a safety and reliable connection via the superior construction which includes three-point centering of the wire in the prism-shaped sleeve base, a fluted contact surface for low contact resistance, and screws secured with spring-loaded elements.
The elastic structure is used to realize screw self-locking.
Made from industrial flame retardants nylon PA66.
Enclosed insulating case.
Long durable time.
Perfectly suitable for electrical machine control systems.
Comprehensive range of accessories: Plug-in bridges, marking strips, marking holder.
It is a serie of economy terminal blocks that create convenient wiring connection and termination locales.
The JUK screw terminal block series has the typical features which are decisive for practical applications.
The terminal blocks have an enclosed housing made from Flame resistant Nylon, with copper conductive elements.
Green-yellow ground terminal blocks are also available.
With universal foot which can be installed on Din Mounting 35mm.
It can connect two conductors easily, even large conductor cross sections are not a problem.
2.TECHNICAL PARAMETERS
| Model Number | JUKH 95 |
| Color | Grey, Blue, other color can be customized |

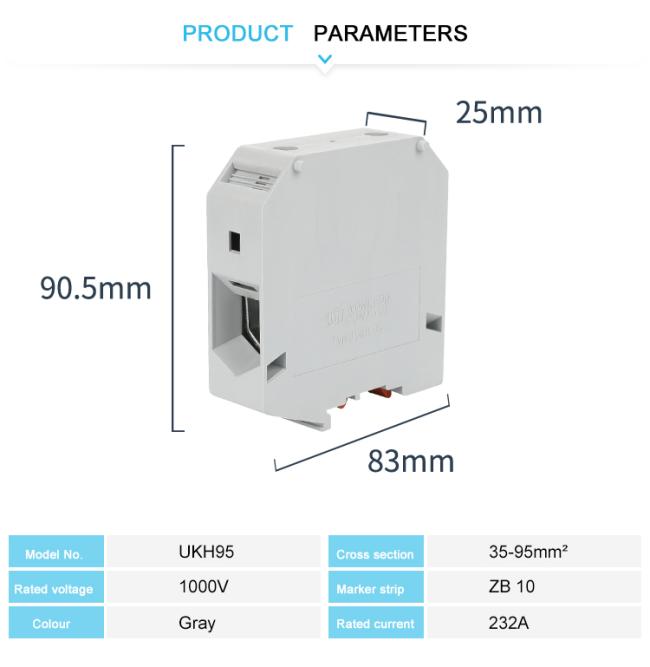

| Length/Height/Wide (mm) | 83/90.5/25 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 1000V/232A |
| Cross section, solid/soft Cable | 25-95 mm² / 35-95 mm² |
| Conductor Size | 4-000 AWG |
| Mounting Type | NS 35 DIN rail |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 194.23g/pc, 120PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
