JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety
JUISLKG 3N PE Terminal Block
JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety
1. DESCRIPTION
The ground terminal blocks have very low contact resistance accordance with ground connections in wiring systems of international standards. Green-yellow color connection coding was followed by international standards.
Made from Flaming retarding PA 66,high-strength copper.
Corrosion-proof contact point.
Strong contact force and excellent connection.
Safe connection. Safe operation.
Using space-saving design.
All types of accessories with high quality.
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space.
With universal foot which can be installed on Din Rail NS 35.

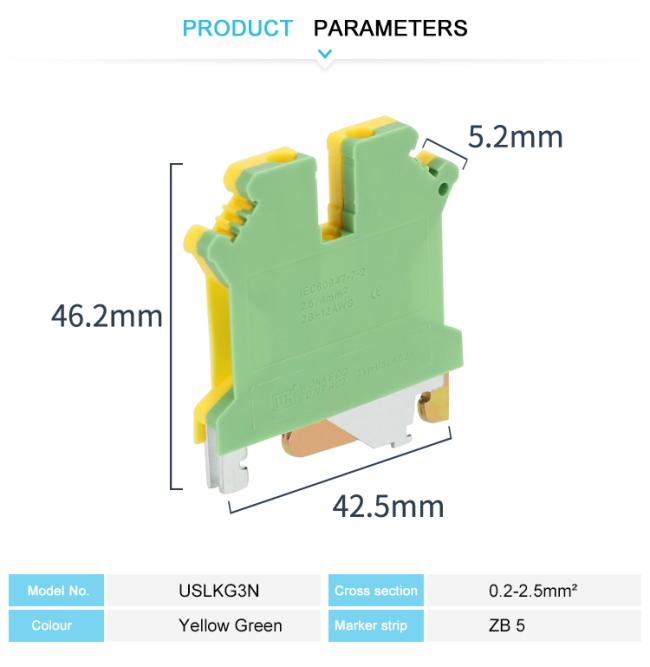

2.TECHNICAL PARAMETERS
| Model No. | JUSLKG 3, Ground Modular Terminal Block |
| Color | Yellow/Green, other color can be customized |
| Length/Height/Wide (mm) | 42.5/46.2/5.2 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, Nickel plated brass conductor |
| Rated Voltage/Current | 800V/101A |
| Cross section, solid/soft Cable | 0.2-4 mm² /0.2-2.5 mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 16.13g/pc, 50PCS/BOX, 1300PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |

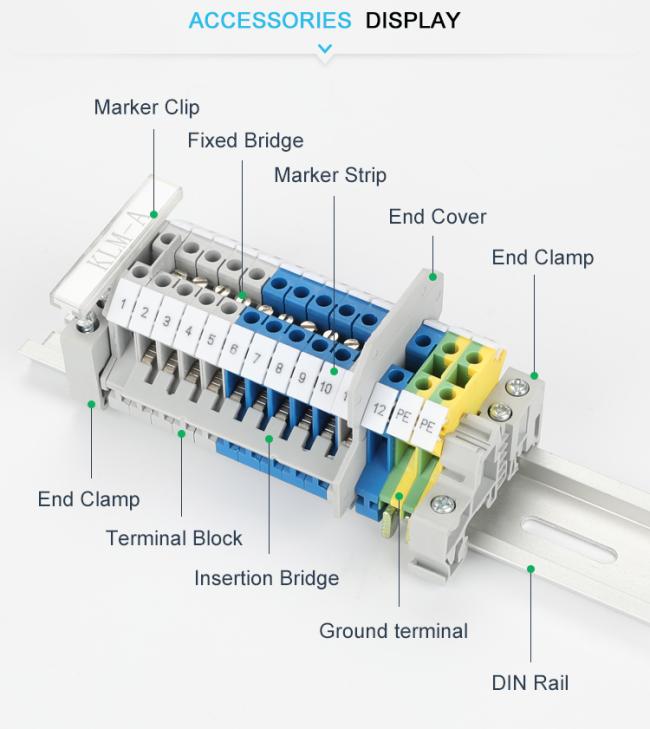

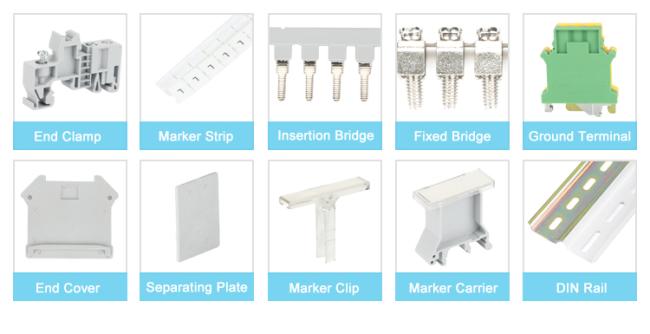

3. PRODUCT DETAIL
-
Screw DIN Rail Terminal Block
-
Terminal Marker Carrier
-
Partition Plate for Terminal Block
