JUSLKG 10N UK Ground Electrical Terminal Block , Screw Terminal Wire Connectors Rail Type Low Voltage Earth PE
JUSLKG 10N UK Earthing Terminal Block
JUSLKG 10N Electrical Terminal Block , Terminal Block Wire Connectors Rail Type Low Voltage Earth PE
1. DESCRIPTION
The Ground Terminal Blocks offer protective insulation , it makes you confidence that your product is safe and secure.
The screw-mounted connection ensures that they are firmly clamped into position, so you don't have to worry about loose wires.
◆ Space-saving design.
◆ Corrosion-proof contact point.
◆ Ease of handling and a reliable electrical connection.
◆ An excellent vibration proof protection against loosening.

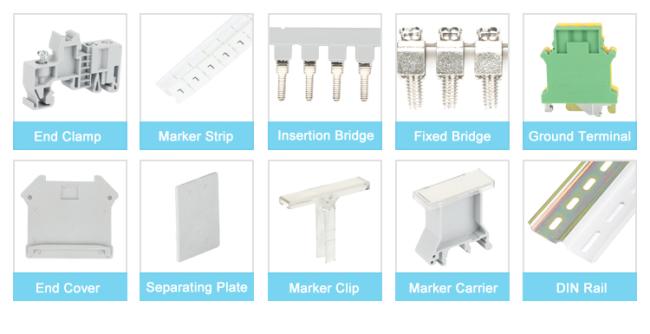

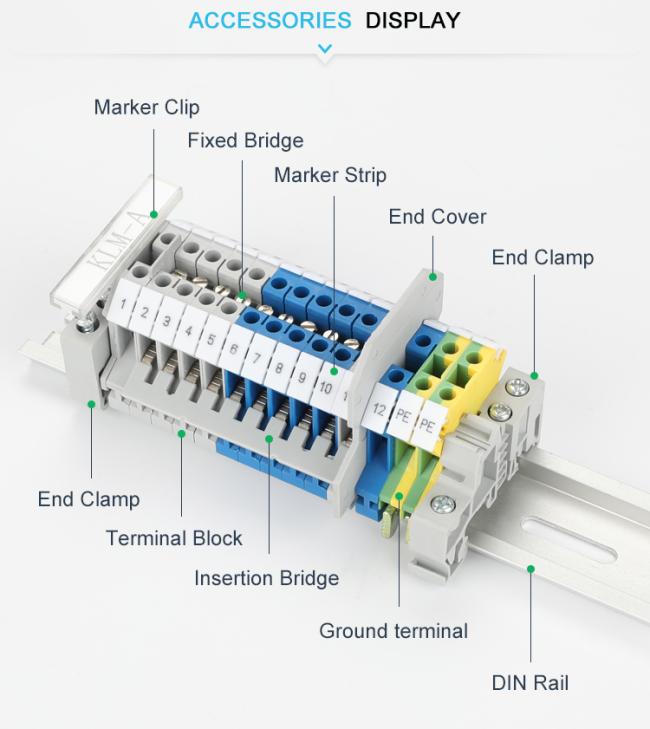

◆ All types of accessories with high quality.
◆ The JUK universal screw terminal block series has the typical features which are decisive for practical applications.
◆ Made from Polyamide 6.6 and nickel plated brass.

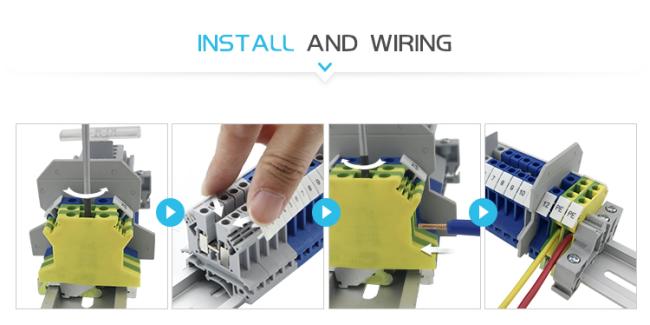

◆ With a single click,and simply snap onto the DIN rail to build the PE connection.
◆ Designed to give you the best conductivity in applications such as control panels and rails.
◆ OEM service supporting.
2.TECHNICAL PARAMETERS
| Model No. | JUSLKG 10N, Ground Modular Terminal Block |
| Color | Yellow/Green, other color can be customized |

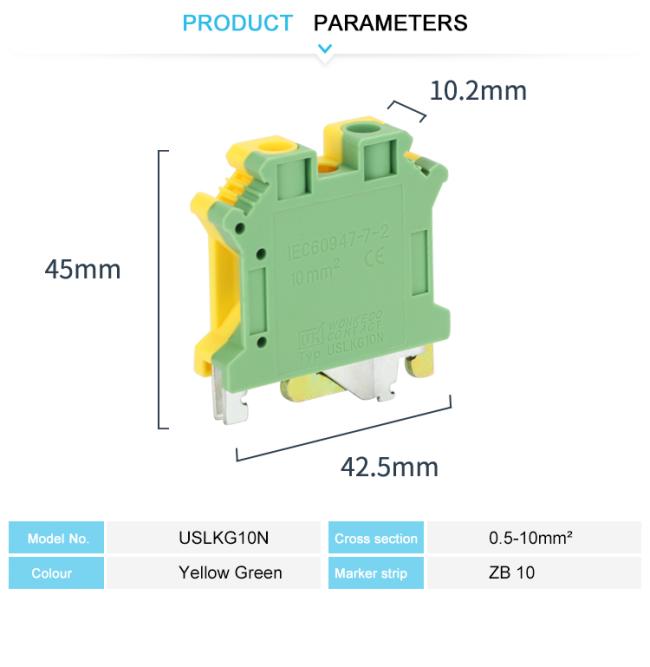

| Length/Height/Wide (mm) | 42.5/45/10.2 |
| Connection | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/76A |
| Cross section, solid/soft Cable | 0.5-16 mm² /0.5-10 mm² |
| Conductor dimension | 20-6 AWG |
| Mounting | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 27.81g/pc, 50PCS/BOX ,700PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
