JUISLKG 35 Compact Universal Electrical Terminal Block Yellow Green Color Frameproofing Nylon PA66
JUISLKG 35N Screw Connect Ground Terminal
JUISLKG 35 Compact Universal Electrical Terminal Block Yellow Green Color Frameproofing Nylon PA66
1. DESCRIPTION
WonkeDQ ground terminal blocks have the same shape as the standard terminal block, in a green yellow housing. The Ground Terminal Blocks offer protective insulation , it makes you confidence that your product is safe and secure.They can easily snap onto the DIN rail to make a reliable mechanical and electrical contacting which meets all requirements of IEC 60-947-7-2.
The JUK universal screw terminal block series has the typical features which are decisive for practical applications.
Made from Flaming resistance Nylon PA 66, Brass metal.
Corrosion-proof contact point.
Strong contact force and excellent connection.
Ease of handling and a reliable electrical connection.
Safe and stable performance.
Made from safe and high quality material.
With steel foot which can be installed on Din Rail 35mm.

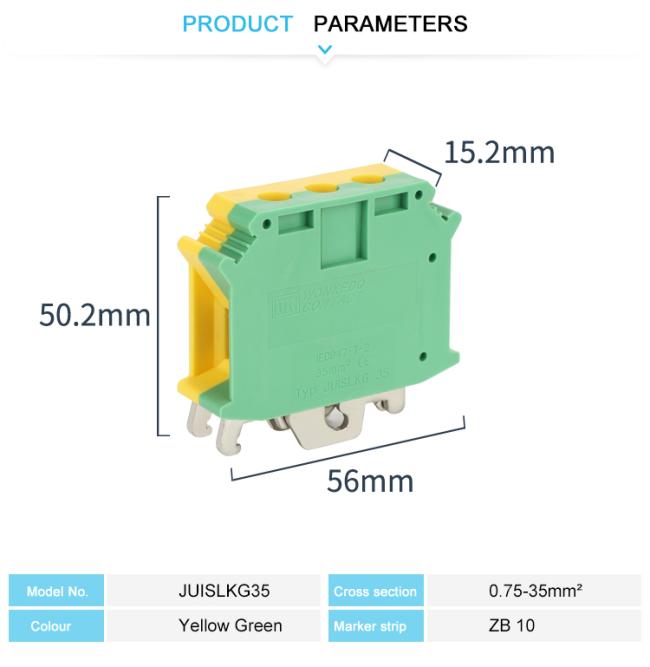

2.TECHNICAL PARAMETERS
| Model No. | JUISLKG 35 Ground Modular Terminal Block |
| Color | Yellow/Green, other color can be customized |
| Length/Height/Wide (mm) | 56/50.2/12.2 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, Nickel plated brass conductor |
| Rated Voltage/Current | 1000V/150A |
| Cross section, solid/soft Cable | 0.75-50mm² /0.75-35mm² |
| Conductor Size | 18-2 AWG |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 65.02g/pc, 20PCS/BOX,340PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
