281-101 Rail Mount Wire Spring Terminal Block Connectors Center Marking For Distribution Boxes Nylon PA66 Grey Color
281-101 Terminal Connector
281-101 Rail Mount Spring Terminal Block Connector Center Marking For Distribution Boxes
1. DESCRIPTION
The spring rail-mount terminal blocks systems use proven spring pressure connection technology, reducing service costs and increasing system uptime and reliability.
Long durable time.
Vibration proof.
Automatic contact spring.

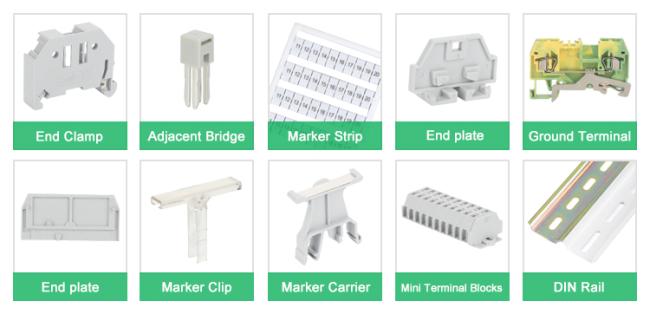

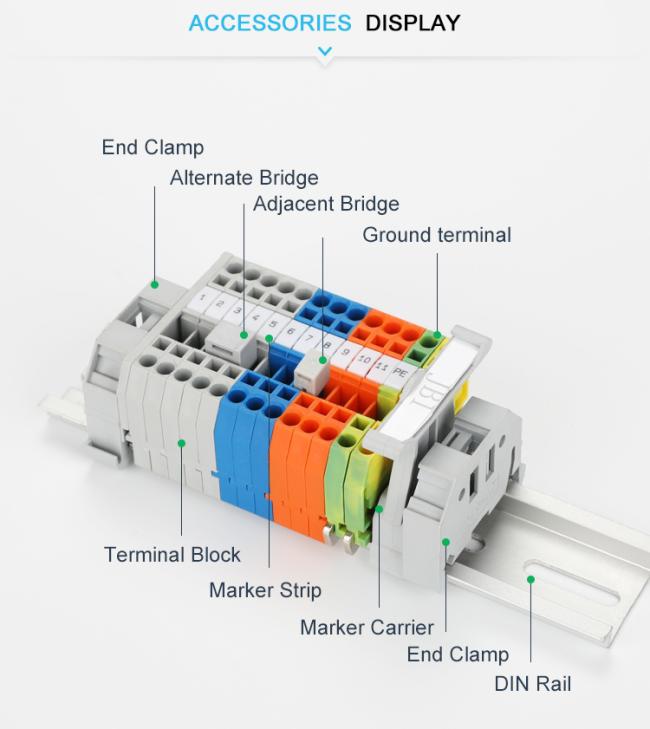

All types of accessories with high quality.
Stable and low contact resistances.
Corrosion-proof contact point.
Safe and stable performance.

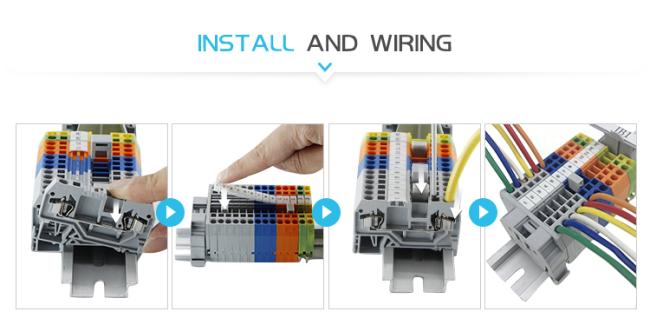

Reduce the installation time and speed the wiring.
Ease of handling and a reliable electrical connection.
Made from flaming resistant Nylon PA 66, Stainless steel spring.
2-conductor terminal strip.
With snap-in mounting feet; Fixing hole 3.5 mm
For plate thickness 0.6 - 1.2 mm
Can snap on 210-154 aluminum rail or with 209-123 mounting carrier for DIN 35 rail.

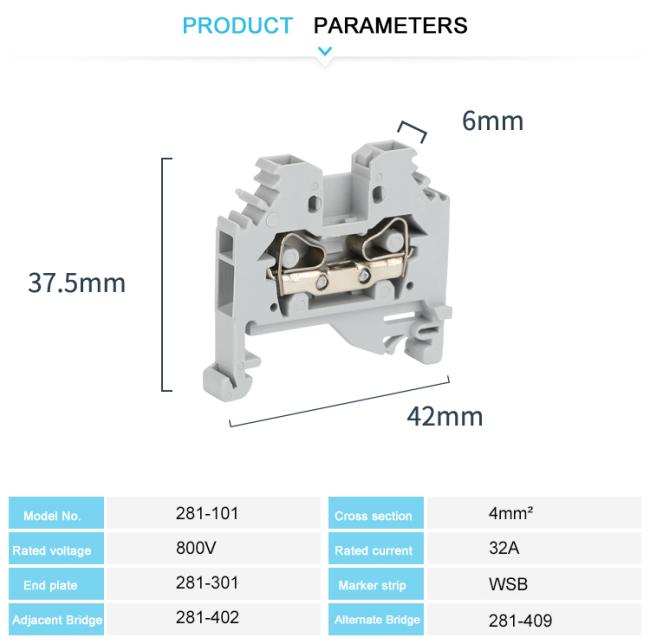

2.TECHNICAL PARAMETERS
| Model Number | 281-101 |
| Color | Grey, other color can be customized |
| Length/Height/Wide (mm) | 42/37.5/6 |
| Connection method | Spring-cage connection |
| Material | Flaming resistant Nylon PA66 |
| Rated Voltage/Current | 800V/32A |
| Cross section | 0.08-4 mm² |
| Conductor Size | 28-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 6.13g/pc, 100PCS/BOX,2000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
