282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry Nylon PA66 Grey and Other Color
282-101 Din Rail Spring Clamp Terminal Block Feed Through 6mm Side Entry
1. DESCRIPTION
The spring feed through terminal blocks is based on spring clamp connection , an electrical connection is established by clamping the striped conductors. Especially used in the automotive and commercial market including railway industries.
Long durable time.
Vibration proof.
Shock resistance.
Steady structure.
Automatic contact spring.
Corrosion-proof contact point.
Space-saving and time-saving design.

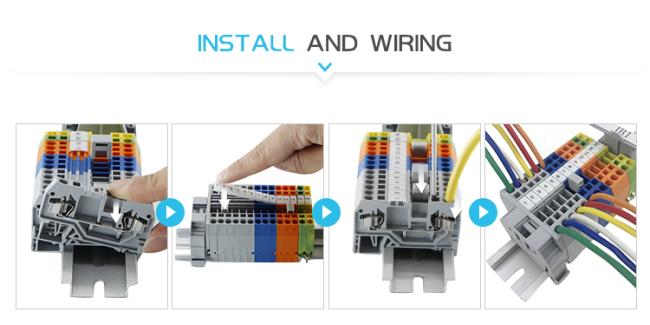

Reduce the installation time and speed the wiring.
All types of accessories with high quality.
Made from PA 66 with corrosion-resistant copper metal.
Fast installation, completely vibration-proof and maintenance-free.
With universal foot for 35mm Din Rail.
Easy for mounting or dismounting.

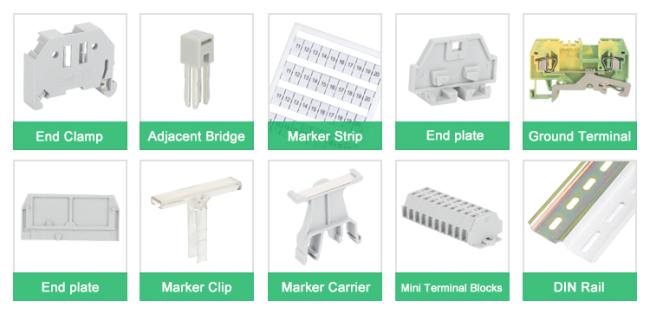

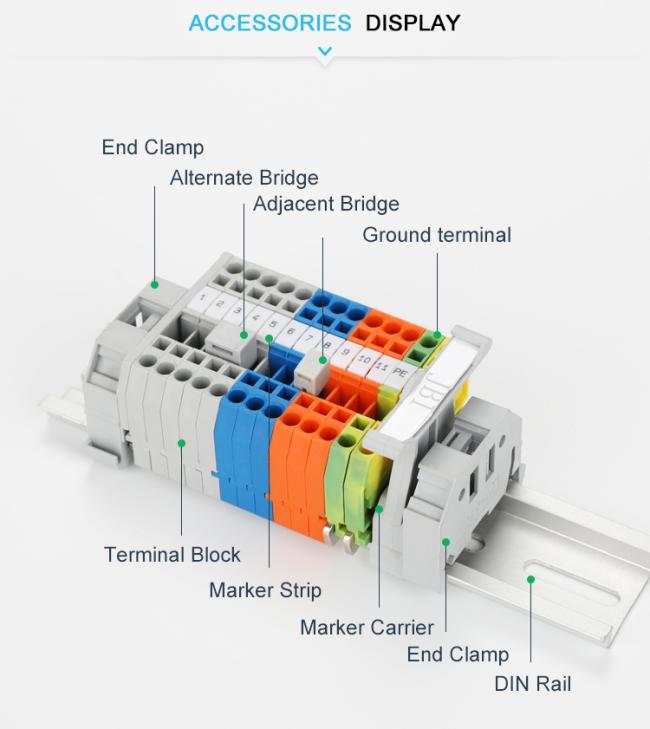

All types of accessories available: End cover, End Stopper,Marker strip, Bridges, etc.

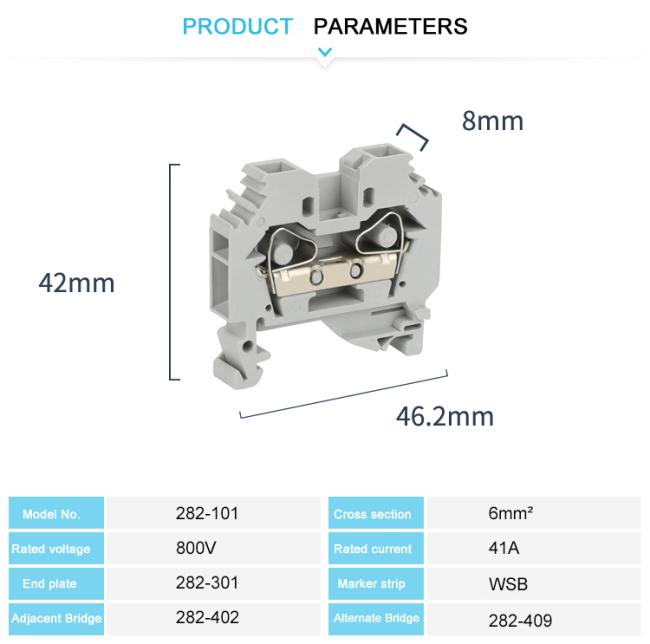

2.TECHNICAL PARAMETERS
| Model Number | 282-101 |
| Color | Grey, other color can be customized |
| Length/Height/Wide (mm) | 46.5/42/8 |
| Connection method | Spring-cage connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/41A |
| Cross section | 0.5-6 mm² |
| Conductor Size | 24-10 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 11.08g/pc, 50PCS/BOX,1400PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
