280-837 Spring Cage Ground Terminal Block Connectors Green Color Flaming Retarding Nylon PA66
280-837 4 Conductor Ground Terminal Block
280-837 Clip Spring Cage Connection Terminal Block Green Color Flaming Retarding Nylon
1. DESCRIPTION
The Protective Terminal Blocks have a contact foot in the bottom level,establishing direct contact to the carrier rail, also can be easily snapped onto the DIN Rails.
Green and yellow shell.the internationally accepted color designation for ground circuits.
High safety.
Vibration proof.
Steady structure.
Automatic contact spring.
Safe and reliable connection.
Safe and stable performance.
Shock resistance & Corrosion resistance.
Made from safe and high quality material.
Made from flaming retarding Nylon PA 66 with Copper conductors.
Single layer spring terminal blocks are suitable for DIN Rail 35mm.
The front entry design can allow operate in a small space.
The marking strips can be customized in different contents.
OEM Service provided.

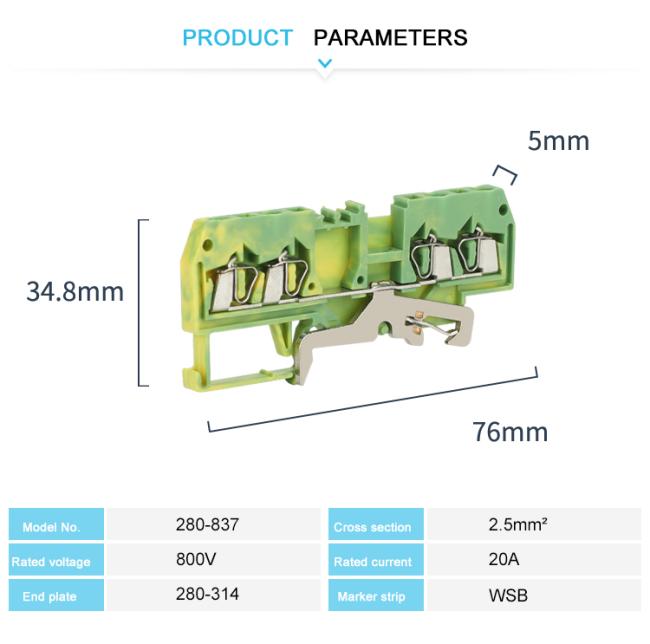

2.TECHNICAL PARAMETERS
| Model Number | 280-837 |
| Color | Yellow/Green, other color can be customized |
| Length/Height/Wide (mm) | 76/34.8/5 |
| Connection method | Spring-cage connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 800V/20A |
| Cross section | 0.08-2.5 mm² |
| Conductor Size | 28-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 12.96g/pc, 65PCS/BOX, 1625PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |

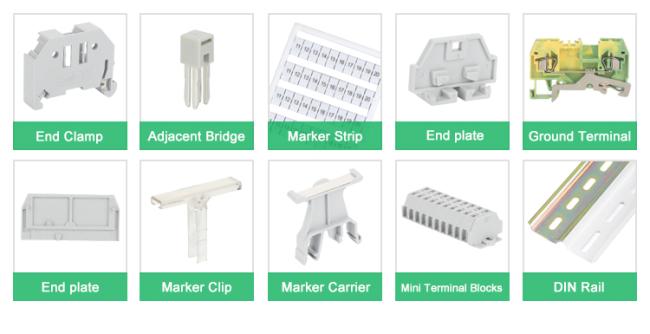

3.RELATED PRODUCTS
-
