Mini RF Data Module Low Power Wireless Transceiver TTL Port 9600bps 433MHz
Mini RF Data Module Low Power Wireless Transceiver TTL Port 9600bps

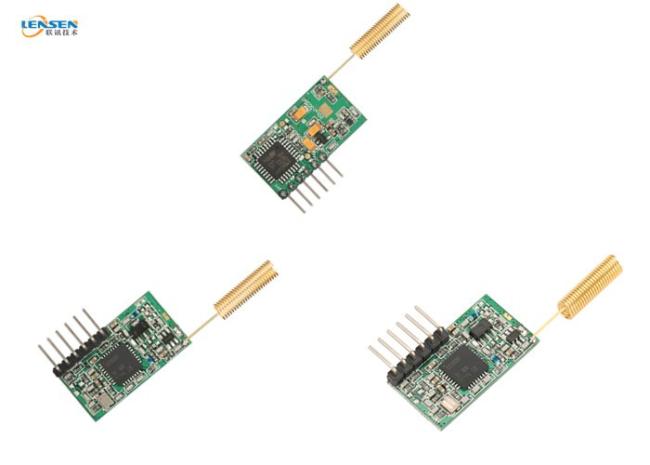

LS-S100 is a Mini-size RF data module.
It is usually used for restricted space application.
TTL interface module is good for microcontroller wireless communication
Parameter
| PERFORMANCE | |
| Power Output: | 100mW(Default), |
| RF Line-of-sight Range: | 1000m@1200bps; 600m@9600bps |
| RF Effective Rate: | 1200/2400/4800/9600/19200bps |
| Space Channel: | 1MHz(Default),(12.5/25KHz/other customization ) |
| Bandwidth: | <25KHz |
| Receiver Sensitivity: | -123dBm@1200bps(1% BER) |
| NETWORKING | |
| Networking Topology: | Point-to-point, point-to-multipoint |
| COMPATIBILITY | |
| LS-U Series | |
| POWER | |
| Supply Voltage: | 5V DC (default), |
| Transmit Current: | 100mA |
| Receive Current: | 30mA |
| Sleep current: | 10uA |
| GENERAL | |
| Communication Mode: | Half-duplex |
| Frequency Band: | 433MHz (400/450MHz/470MHz) |
| Channel: | 8(default),16/32/64(optional) |
| Interface: | TTL |
| PHYSICAL PROPERTIES | |
| Size: | 28mm×15mm×10mm (excluding antenna base and data pin) |
| Weight: | 20g |
| Antenna Base: | 50Ω, SMA |
| Operating Temperature: | Industrial:-40℃~+85℃(TCXO) |
| Frequency Stability: | ±2.5ppm Industrial |
Application Field
- SCADA
- GPS fleet tracking
- Security systems
- Vending machine monitoring
- Remote parking and gate access systems
- Remote weigh scales
- HVAC control
- Remote pump station control
- Homeland defense
- Airborne telemetry
- Remote instrumentation
- Wireless pressure and temperature sensors
- wireless data transfer
How to Use It
1. Default 5V Power supply
2. PIN Definition (6pin)
Table 1: JP1 Pin Definitions and connection methods
| Pin No. | Signal Name | Function | Level | Connection with terminal | Remarks |
| 1 | GND | Grounding of power supply | - | Ground | |
| 2 | VCC | Power supply: DC 5V | - | ||
| 3 | RXD/TTL | Data receiving | TTL | TxD | |
| 4 | TXD/TTL | Data transmitting | TTL | RxD | |
| 5 | SLP | Sleep control | - | Sleep signal | Low level valid |
| 6 | TEST | Factory testing | - | - |
Parameter setting by our software
You can use our software Lensen.exe to read or set the parameter on computer. When you connect RF module to PC by the testing cable, please remember to connect the DB9 as well as USB port to computer.
Corresponding frequency points at 433MHz of 1-8 channels
| Channel | Frequency | Channel | Frequency | Channel | Frequency | Channel | Frequency |
| 1 | 429.0325MHZ | 2 | 430.0325MHZ | 3 | 431.0325MHZ | 4 | 432.0325MHZ |
| 5 | 433.0325MHZ | 6 | 434.0325MHZ | 7 | 435.0325MHZ | 8 | 436.0325MHZ |
