20MT/Day 40Cr Die Head 250mm MPP PE Pipe Extrusion Line
MOQ:
1 sets
Delivery Time:
60 working days
Brand:
HUASU
Product Description

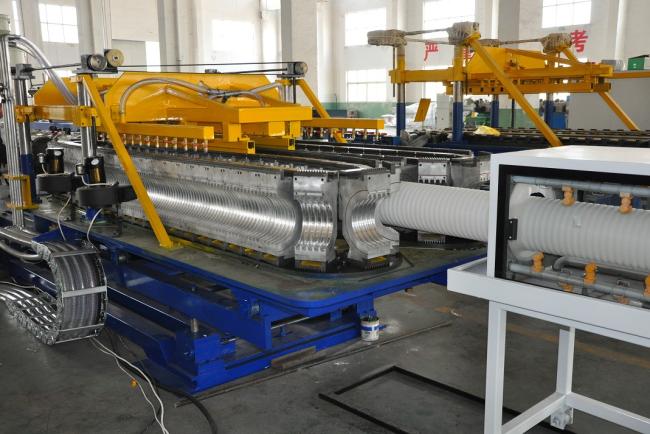

HDPE Double Wall Corrugated Pipe Line SBG 250
- Application: electric conduit
- Pipe length: according the customer’s inquiry
- Recommended raw material: new material for PE single wall corrugated pipe
|
NO.
|
Internal Diameter( mm)
|
Outside Diameter ( mm)
|
| 1 | 90 | |
| 2 | 110 | |
| 3 | 160 | |
| 4 | 200 | |
| 5 | 250 |
|
Extruder
|
Motor |
Max. Output
|
| SJ90/30 | 75kw | 150-260kg/h |
| SJ65/30 | 37kw | 60-120kg/h |
|
No.
|
Name & Model
|
Quantity
|
|
| 01 | Single Screw Extruder SJ90X30 | 1 set | |
| 02 | Single Screw Extruder SJ65X30 | 1 set | |
| 03 | Molds |
90mm die head water sleeve mould block 90mm |
5sets |
|
110mm die head water sleeve mould block 110mm |
|||
|
160mm die head water sleeve mould block 160mm |
|||
|
200mm die head water sleeve mould block 200mm |
|||
|
250mm die head water sleeve mould block 250mm |
|||
| 04 | Forming Machine SBCJ-315 | 1 set | |
| 05 | Cutting Machine STG-315 | 1 set | |
| 06 | Unloading Bracket | 1 set | |
| 07 | PLC Control System SBG 315 PLC | 1 set | |
The advantages of plastic corrugated pipes
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission
capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its
flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.
8. safe insulation, is an ideal material for the electric wire conduit.
