SS316 High Temperature Resistance Excellent Sealing Performance High Hub Blind Flange

High hub blind flange is a type of flange used in pipeline systems to completely seal the ends of pipelines. It does not have a central hole and is mainly used for isolating, sealing, or temporarily sealing pipeline systems. A blind flange is a circular or square metal piece with a flange surface on one side that matches the outer and inner diameters of the corresponding pipeline size, and has several bolt holes, and a smooth sealing surface on the other side. When installed on the pipeline, it is fixed to adjacent flanges with bolts and nuts, forming a completely closed fracture.

Performance of High Hub Blind Flange

Characteristics of high hub blind flange:

• Good sealing to prevent medium leakage
• Rust and corrosion prevention, sturdy and wear-resistant
• Good disassembly capability
• Widely applicable, suitable for various occasions
• Flexible selection

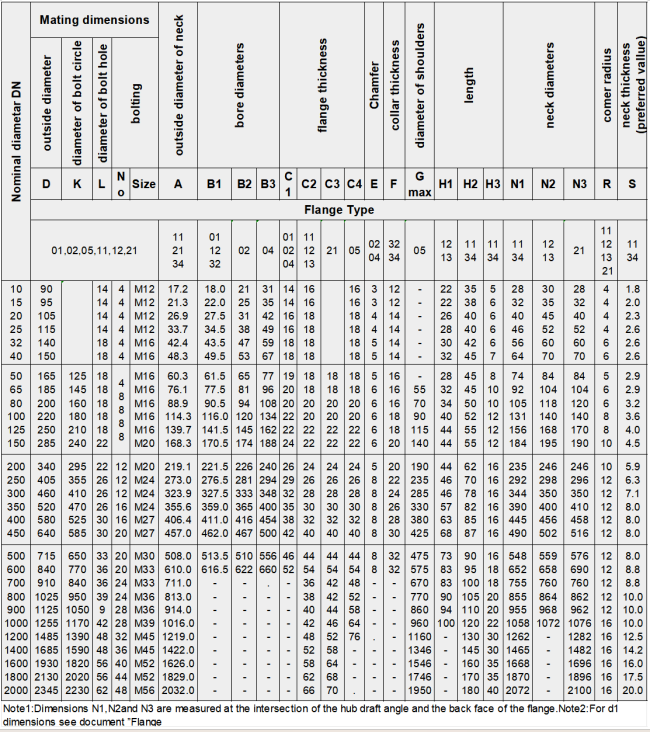

Product Parameters

Flanges are not a one-type-fits-all sort of solution. Sizing aside, matching the ideal flange design to your piping system and intended usage will help to ensure reliable operation, a long service life, and optimal pricing.

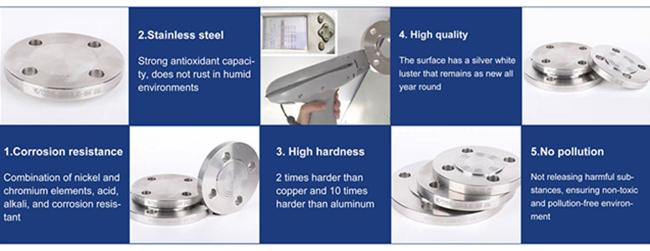

High Hub Blind Flange details show.

Do you know how is a high quality High Hub Blind Flange made?Let's see with JINGNING.

Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation

High Hub Blind Flange Application

Metal flanges are commonly used for industrial, commercial, and institutional application. Steel pipe flanges are available in variety of styles and pressure classes. Metal flanges are classified from 150 to 2500 # rating. In addition to specifying pressure class, certain flanges such as weld neck flange & socket weld flange also require specifying the pipe schedule. This ensures the pipe bore will match the bore of the weld neck or socket weld flange.

Our Advantage

FAQ

Q1:Can the high hub blind flange be marked with customized logo?

A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.

Q2:What’s the package?

A2:The package is carton box and strong plywooden case.

Q3:Can you provide drawings?

A3:Yes,we could provide drawings for you.Please contact us to get the drawing of high hub blind flange.

Q4:What certificates of high hub blind flange can you provide?

A4:We could provide CE,ISO certificate.
