Cast Steel Y Type Strainer A216 WCB 150LB with Flanged Drain Plug Special Design

Quick Details:

1. Strainer Type: Y Type

2. Sizes: 2”- 36”

3. Pressure rating: ANSI 150LB / 150#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: Carbon Steel A216 WCB

6. Screen: Stainless steel (SS304, SS316, SS316L), Duplex Stainless Steel (2205, 2507)

7. Mesh size: 10mesh, 20mesh, 40mesh, 60mesh, 100mesh,200mesh,400mesh etc.

8. End connection: Flanged (RF, FF), Butt Welding (BW)

9. Drain Plug: Flanged Type

10. Nace Mr0175

Strainer Features

1. Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.

2. Y Strainer Features

A compact type strainer with low fluid resistance and requiring less installation space.

The Y type strainer can be widely used for removing dirt and dust from pipelines.

Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Descriptions:

1. Y Type Strainer Standards

Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47 A
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34

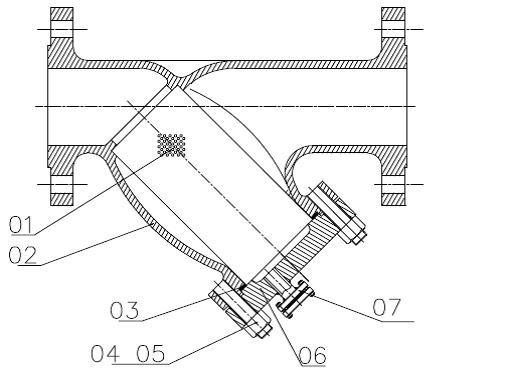

2. Main Parts and Material List For Y Type Strainer

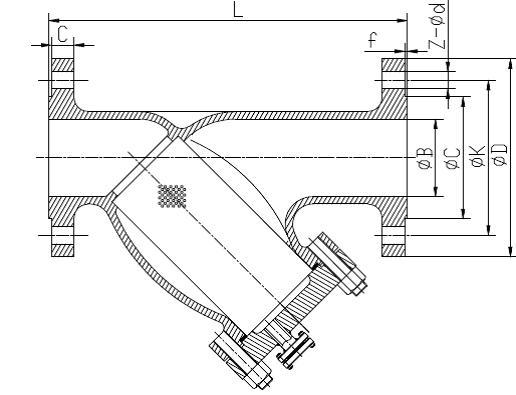

2. Main Connection Dimensions:
