Parking Lot LED Shoebox Retrofit Kit Arm / Slip Fitter / Trunnion Mount Type Available
Arm Mounting Slip Fitter Mounting Trunnion Mounting LED Shoebox Parking Lot Retrofit Lights

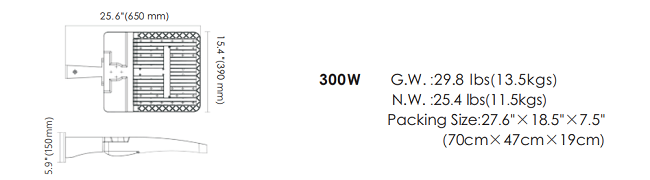

Dimension
| Type | LD-300Watt | ||
| Power | 300Watt | Lighting Angle | TypeII,TypeIII,TypeVs |
| Input Voltage | AC100-277V,AC300-480V | LED Brightness Decay | <5%,6000hrs |
| PF | >0.95 | Working Life | >50000hrs |
| Driver Efficiency | >90% | Working Temperature | -30℃ to+45℃ |
| Luminous Flux | 39000LM | Cable | 3core,18AWG |
| CRI | Ra>80 | G.W./N.W. | 13.5KG/11.5KG |
| Waterproof Rate | IP65 | Lamp Size | 680*350*200mm |
Features
Lumileds LED,high luminous efficiency and long working life
High efficiency LED Driver,the wide range input voltage AC120-277V
Die Cast aluminium cooling design,high quality and better cooling for LED Tj<85℃
Excellent Optics design,greatly improve the light utilization and evenness
Photocell and Motion Sensor Bi-Level Control Avallable (Option).
Fixture EPA
0.51-0.62 sq.ft (300W)
0.48-0.59 sq.ft (200W)
0.48-0.59 sq.ft (150W)
0.48-0.59 sq.ft (100W)
0.48-0.59 sq.ft (60W)

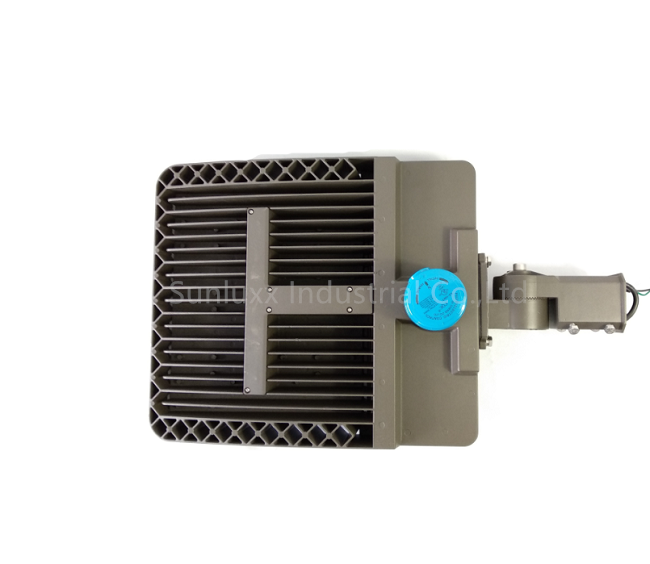

Product Details
Lighting Distribution

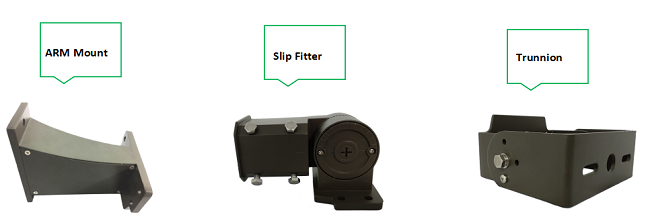

Installation Solutions

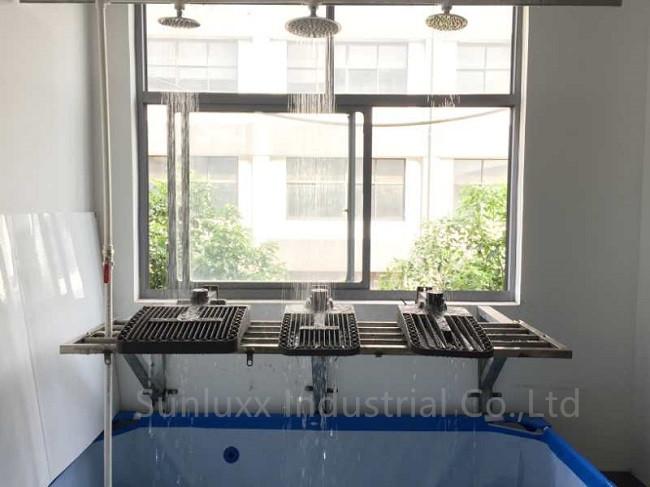

Waterproof Testing Progress
Application
Parking lots,Auto dealerships,Walkways,Campuses,Area lighting,Security lighting,Illumination of areas of ingress
