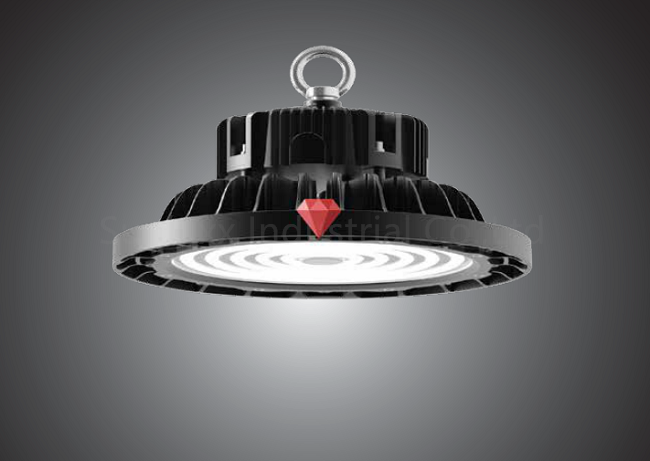

3 In 1 Dimmable UFO High Bay Warehouse Lighting Fixture With Black Color Shell
3 In 1 Dimming Warehouse Fixture UFO LED High Bay Lamp With Black Color Shell
UFO LED High Bay Lamp for wet locations that are also protected against dust and moisture.LED Industrial High bay Light 60Watt is designed to replace a 200W HID fixtures. UFO LED High Bays 60 Watt 9000 lumen universal voltage 120-277V,above 300V is available.
Features
1. Compact and Fashion design.
2. Luminous efficacy up to 160 lm/W, high power factor (>0.95)
3. Uniform light distribution
4. The first patented proprietary optics and higher transmittance 95% water wave lens
5. Surface anti-aging electrostatic spray-paint processing,ensure longer lifespan
6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.
7. Dali Dimmer or Microwave sensor is optional
8. Hook, Chain, Surface mounting options
| Produce Code |
HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W |
||||||
| Power | 60Watt | 80W 100W | 120W 150W | 200W 240W | |||
| Input Voltage | 90-305VAC | ||||||
| Input Current |
60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC |
||||||
| PF | >0.90@220VAC | ||||||
| DC output voltage | 60W:54V 80W100W120W150W: 48V | ||||||
| DC output current | 60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A | ||||||
| Dimming (Optinal) | 3 in 1 dimming (PWM, 0-10V, Resistor),Dali | ||||||
| CCT | 4000K,5000K,5700K,3000K | ||||||
|
Ra >70 5000K |
Typical Flux |
60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5% |
|||||
| LED Brand | Nichia 3030 and Lumileds 3030 | ||||||
| Beam Angle | 60°,90°,120° | ||||||
| Operation Temp | -40℃ ~ +45℃ | ||||||
| Storage Temp | -40℃ ~ +85℃ | ||||||
| Life Circle | 45℃ 50000Hours | ||||||
| IP Class | IP66 | ||||||
| IK Class | IK08 | ||||||
| Certificate | CE,ROHS | ||||||
| Body Color | Black (default with RAL9005),Gray ( optional for RAL9007) | ||||||
Product details
Light Distribution
Delivery
