Waterproof UFO High Bay LED Fixtures Elegant Designed With Three Color Temperature
Elegant Design Waterproof High Bay LED UFO Fixtures With Three Color Temperature
High Bay LED UFO Fixtures come in the traditional circular shape with optional aluminum.These types of High Bays have the LED chips on the underside of the fixture covered with Lens and with the LED driver attached on the side.But LED driver separated with the hean sink,The advantage of this is to make sure the heat of LEDs and the driver for better cooling and to prevent overheating.
Features
1. Compact and Fashion design.
2. Luminous efficacy up to 160 lm/W, high power factor (>0.95)
3. Uniform light distribution
4. The first patented proprietary optics and higher transmittance 95% water wave lens
5. Surface anti-aging electrostatic spray-paint processing,ensure longer lifespan
6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.
7. Extra lengthen cable is available
8. Easily replace standard high bay fixtures.
9. 5 years warranty
| Produce Code |
HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W |
||||||
| Power | 60Watt | 80W 100W | 120W 150W | 200W 240W | |||
| Input Voltage | 90-305VAC | ||||||
| Input Current |
60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC |
||||||
| PF | >0.90@220VAC | ||||||
| DC output voltage | 60W:54V 80W100W120W150W: 48V | ||||||
| DC output current | 60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A | ||||||
| Dimming (Optinal) | 3 in 1 dimming (PWM, 0-10V, Resistor),Dali | ||||||
| CCT | 4000K,5000K,5700K,3000K | ||||||
|
Ra >70 5000K |
Typical Flux |
60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5% |
|||||
| LED Brand | Nichia 3030 and Lumileds 3030 | ||||||
| Beam Angle | 60°,90°,120° | ||||||
| Operation Temp | -40℃ ~ +45℃ | ||||||
| Storage Temp | -40℃ ~ +85℃ | ||||||
| Life Circle | 45℃ 50000Hours | ||||||
| IP Class | IP66 | ||||||
| IK Class | IK08 | ||||||
| Certificate | CE,ROHS | ||||||
| Body Color | Black (default with RAL9005),Gray ( optional for RAL9007) | ||||||
Product

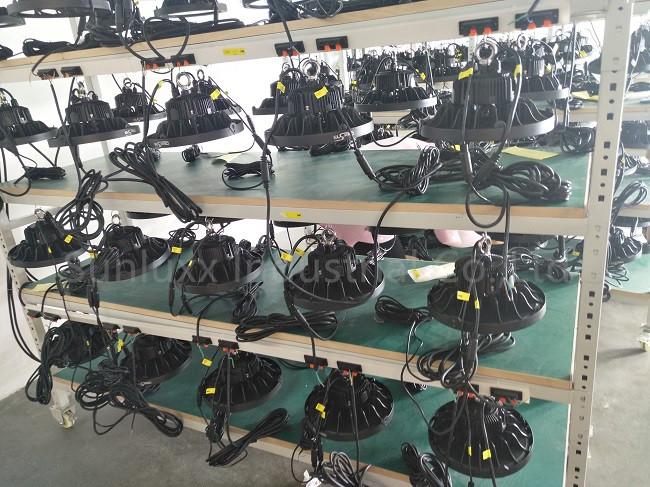

Aging Test

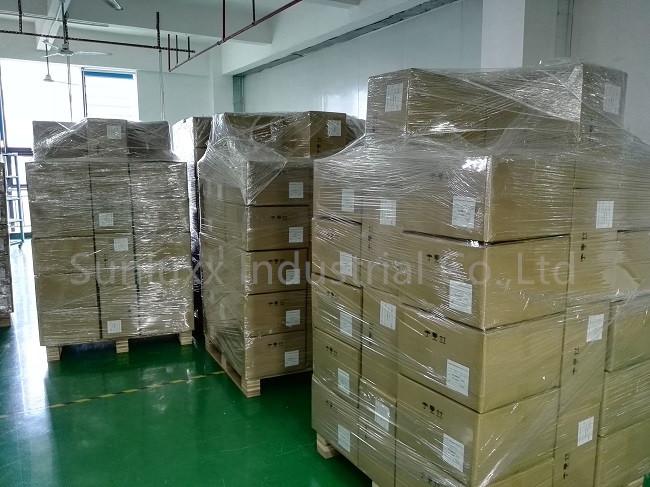

Package
