Smooth Surface Aluminum Round LED High Bay , Industrial LED High Bay Light Fixtures
Spraying process Smooth Surface Aluminum LED High Bay For Industrial Lighting
Aluminum LED High Bay provide superior lighting and energy savings over commercial HID fixtures.
Sunluxx Industrial LED High Bay Fixtures offer up to 7 YEARS guarantee,low maintenance lighting,even in the harshest environments.
Features
1. Compact and Fashion design.
2. Luminous efficacy up to 160 lm/W, high power factor (>0.95)
3. Uniform light distribution
4. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.
5. Easily replace standard high bay fixtures.
6. Up to 7 years warranty
7. Up to 20'(6m) mounting height
| Produce Code |
HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W |
||||||
| Power | 60Watt | 80W 100W | 120W 150W | 200W 240W | |||
| Input Voltage | 90-305VAC | ||||||
| Input Current |
60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC |
||||||
| PF | >0.90@220VAC | ||||||
| DC output voltage | 60W:54V 80W100W120W150W: 48V | ||||||
| DC output current | 60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A | ||||||
| Dimming (Optinal) | 3 in 1 dimming (PWM, 0-10V, Resistor),Dali | ||||||
| CCT | 4000K,5000K,5700K,3000K | ||||||
|
Ra >70 5000K |
Typical Flux |
60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5% |
|||||
| LED Brand | Nichia 3030 and Lumileds 3030 | ||||||
| Beam Angle | 60°,90°,120° | ||||||
| Operation Temp | -40℃ ~ +45℃ | ||||||
| Storage Temp | -40℃ ~ +85℃ | ||||||
| Life Circle | 45℃ 50000Hours | ||||||
| IP Class | IP66 | ||||||
| IK Class | IK08 | ||||||
| Certificate | CE,ROHS | ||||||
| Body Color | Black (default with RAL9005),Gray ( optional for RAL9007) | ||||||

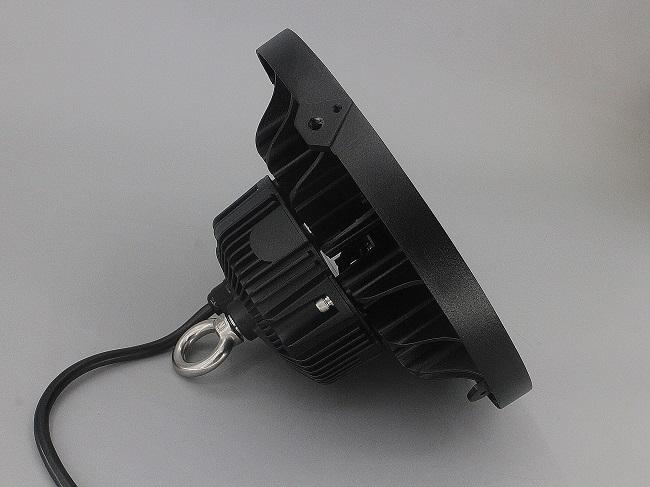

Product

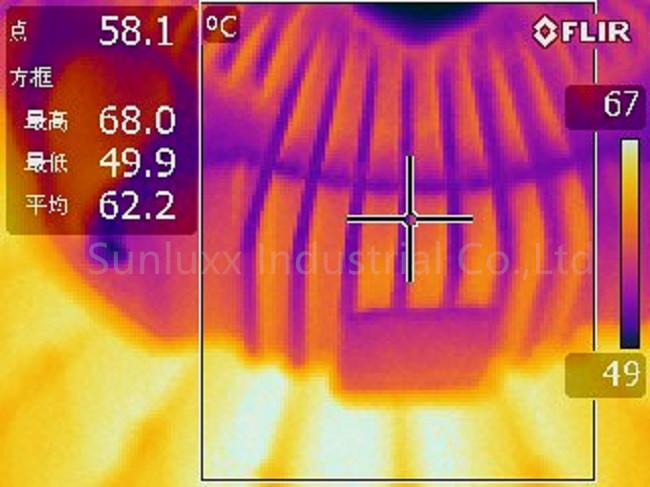

Temperature Test
Link of more details information about Sunluxx UFO LED High Bays
https://youtu.be/oCeWStodFE0
