Warehouse Lighting Use UFO LED High Bay Light 100W With Microwave Sensor
For Warehouse Lighting Area 100W UFO LED High Bay Ceiling Lights With Microwave Sensor
100W UFO LED High Bay Ceiling Lights are among the most significant energy-saving opportunities available in today’s professional lighting market.Benefits include high efficiency, excellent color rendering, long life, instant on, and improved uniformity.
Features
1. Luminous efficacy up to 150 lm/W
2. Uniform light distribution,Deliver outstanding illumination of 15,000 lumens
3. Fast Installation,The effortless 3-minute installation process will save you much installations time
4. IP66-rated to ensure safe, durable, and waterproof operation
5. Up to 30'(9m) mounting height
6. Up to 7 years warranty
| Produce Code |
HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W |
||||||
| Power | 60Watt | 80W 100W | 120W 150W | 200W 240W | |||
| Input Voltage | 90-305VAC | ||||||
| Input Current |
60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC |
||||||
| PF | >0.90@220VAC | ||||||
| DC output voltage | 60W:54V 80W100W120W150W: 48V | ||||||
| DC output current | 60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A | ||||||
| Dimming (Optinal) | 3 in 1 dimming (PWM, 0-10V, Resistor),Dali | ||||||
| CCT | 4000K,5000K,5700K,3000K | ||||||
|
Ra >70 5000K |
Typical Flux |
60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5% |
|||||
| LED Brand | Nichia 3030 and Lumileds 3030 | ||||||
| Beam Angle | 60°,90°,120° | ||||||
| Operation Temp | -40℃ ~ +45℃ | ||||||
| Storage Temp | -40℃ ~ +85℃ | ||||||
| Life Circle | 45℃ 50000Hours | ||||||
| IP Class | IP66 | ||||||
| IK Class | IK08 | ||||||
| Certificate | CE,ROHS | ||||||
| Body Color | Black (default with RAL9005),Gray ( optional for RAL9007) | ||||||

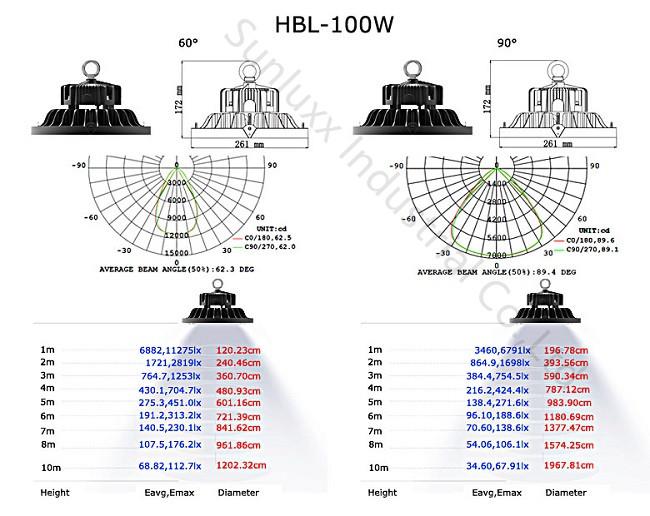

100W UFO LED Warehouse High Bays Light Distribution

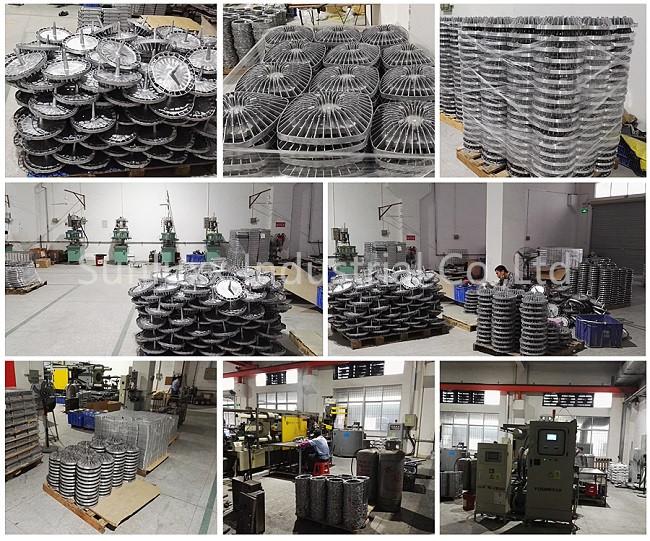

Module Produced of LED High Bay Ceiling Fixtures

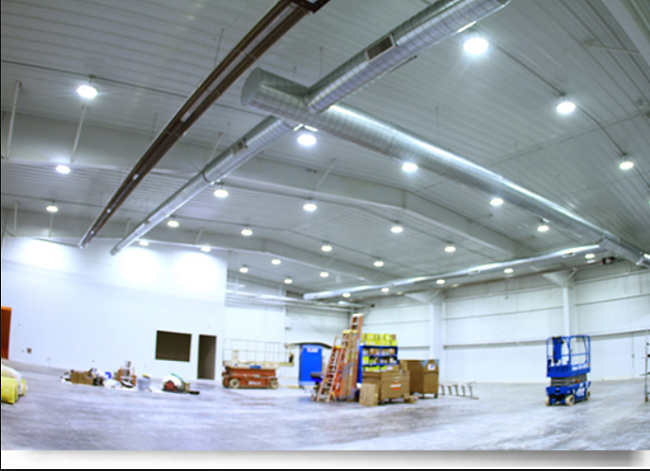

Applications
