Aluminum Housing UFO LED High Bay Light Industrial Lighting Use With 7 Years Warranty
Aluminum Fixtures LED High Bay Housing UFO , Up to 7 Years Warranty For Industrial Lighting
240Watt LED High Bay Housing UFO total 36000 lumens, up to 150 lumens to watt, 5700K,1000 watt HID/HPS Equivalent.
Features
1. Luminous efficacy up to 150 lm/W
2. Simple to replace your old high bay light or make a new installation.
Perfect for warehouse lighting, garage lighting, supermarket lighting, factory lighting and shop lighting
3. Meanwell HBG series driver and Nichia 3030 LED make the LED high bay light fixtures durable without quality headache. With an expected lifespan of 50,000 hours, the LED light will reduce costs for maintenance
4. Up to 45’(13m) mounting height
5. Dimmable Function:3 in 1 dimming (PWM, 0-10V, Resistor),Dali
| Produce Code |
HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W |
||||||
| Power | 60Watt | 80W 100W | 120W 150W | 200W 240W | |||
| Input Voltage | 90-305VAC | ||||||
| Input Current |
60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC |
||||||
| PF | >0.90@220VAC | ||||||
| DC output voltage | 60W:54V 80W100W120W150W: 48V | ||||||
| DC output current | 60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A | ||||||
| Dimming (Optinal) | 3 in 1 dimming (PWM, 0-10V, Resistor),Dali | ||||||
| CCT | 4000K,5000K,5700K,3000K | ||||||
|
Ra >70 5000K |
Typical Flux |
60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5% |
|||||
| LED Brand | Nichia 3030 and Lumileds 3030 | ||||||
| Beam Angle | 60°,90°,120° | ||||||
| Operation Temp | -40℃ ~ +45℃ | ||||||
| Storage Temp | -40℃ ~ +85℃ | ||||||
| Life Circle | 45℃ 50000Hours | ||||||
| IP Class | IP66 | ||||||
| IK Class | IK08 | ||||||
| Certificate | CE,ROHS | ||||||
| Body Color | Black (default with RAL9005),Gray ( optional for RAL9007) | ||||||

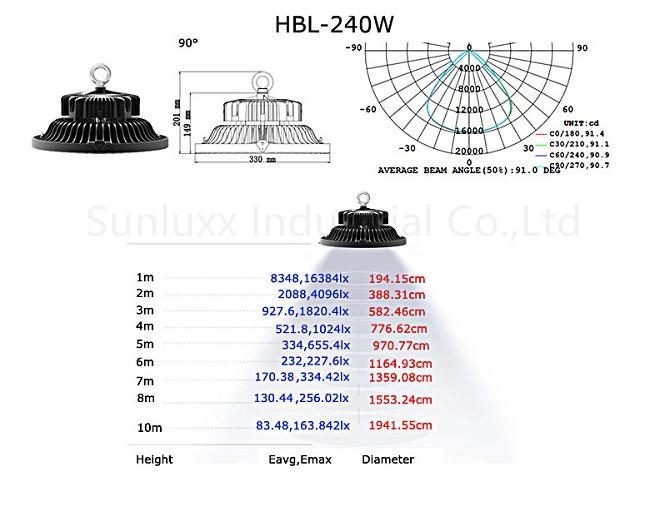

240Watt UFO LED Warehouse Lights High Bay Light Distribution

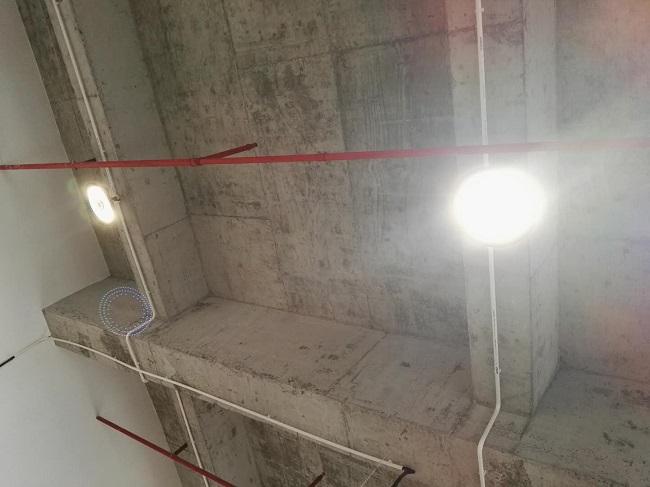

Applications
