3 - Type Mountings LED Shoebox Light Road Lighting Use With Free Shorting Circuit Cap
3-Type Mountings , Free Shorting Circuit Cap 150W LED Shoebox Luminaire IP66 Road Lighting
Unimaginable output of over 19,500 lumens, with efficiency exceeding 130lm/W,Start Cutting Cost on your Energy Bill by as much as 75% when replacing inefficient metal halide shoe box.
| Type | LD-150Watt | ||
| Power | 150 Watt | Lighting Angle | TypeII,TypeIII,TypeVs |
| Input Voltage | AC100-277V,AC300-480V | LED Brightness Decay | <5%,6000hrs |
| PF | >0.95 | Working Life | >50000hrs |
| Driver Efficiency | >90% | Working Temperature | -30℃ to+45℃ |
| Luminous Flux | 19500LM | Cable | 3core,18AWG |
| CRI | Ra>80 | G.W./N.W. | 8.5KG/7.0KG |
| Waterproof Rate | IP65 | Lamp Size | 680*350*200mm |
Features of LED Parking Lot Shoebox Lights
The design structure is more gorgeous and aesthetic
The power junction box is enlarged, and more intelligent modules can be put in.
The gradienter is added on the fixture that it can test if the fixture is installed properly.
The Arm mounting support is changed, the outlet line is more simple and easy to operate, and the installation work can be completed by one person.
Fixture EPA
0.51-0.62 sq.ft (300W)
0.48-0.59 sq.ft (200W)
0.48-0.59 sq.ft (150W)
0.48-0.59 sq.ft (100W)
0.48-0.59 sq.ft (60W)
Three Mounts:Slip Fitter Mount,Arm Mount,Trunnion Bracket Mount

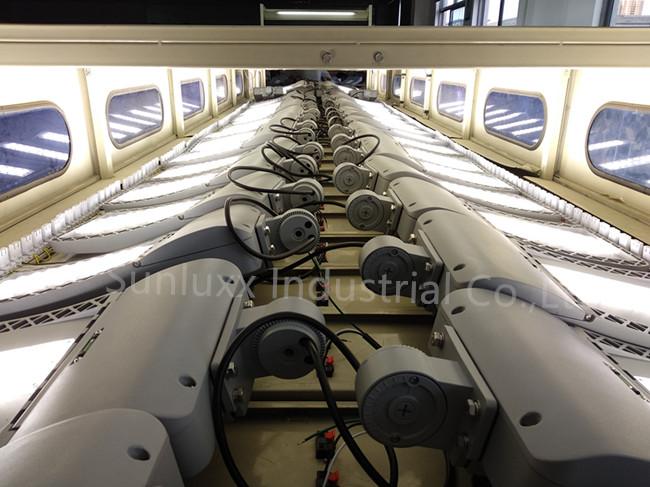

Production

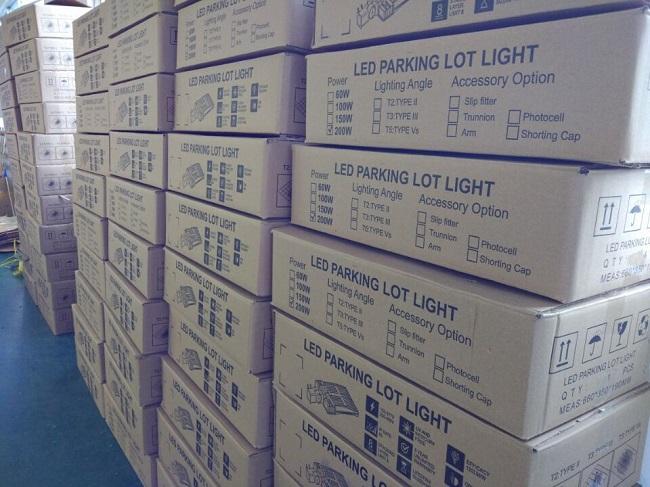

Packing

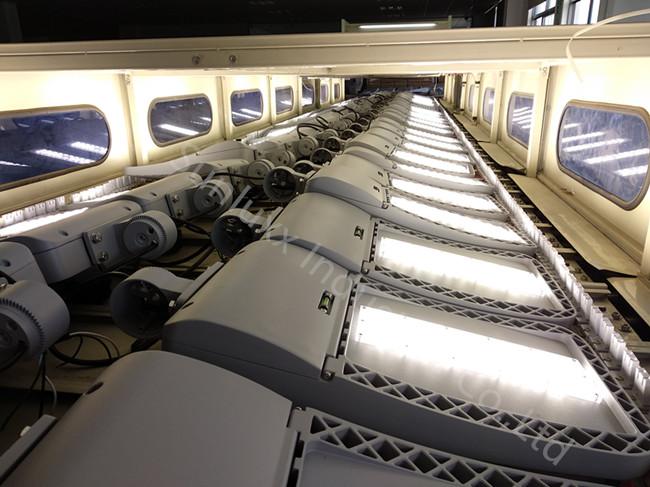

Aging Test
