IP65 IK09 300 Watt LED Shoebox Light , Square / Round Parking Lot Pole Lights
IP65 IK09 300 Watt LED Parking Lot Pole Lights For Square or Round Pole Street Lighting
Sunluxx LED Pole Area Street Lights use high-efficiency LED chips SMD3030 which can reach 130Lm/w,It can replace 1000W MH / HID tradition light.Wildely use for parking lots, streets, plazas, factory, residential area, public entrances lot, roadways, pedestrian walkways, Parking garages,Gas station, Highway Lighting, Park, Sport Lighting, Square Lighting and other outdoor applications.
| Type | LD-300Watt | ||
| Power | 300 Watt | Lighting Angle | TypeII,TypeIII,TypeVs |
| Input Voltage | AC100-277V,AC300-480V | LED Brightness Decay | <5%,6000hrs |
| PF | >0.95 | Working Life | >50000hrs |
| Driver Efficiency | >90% | Working Temperature | -30℃ to+45℃ |
| Luminous Flux | 39000LM | Cable | 3core,18AWG |
| CRI | Ra>80 | G.W./N.W. | 13.5KG/11.5KG |
| Waterproof Rate | IP65 | Lamp Size | 680*500*200mm |
Features of LED Parking Lot Street Lamp
The design structure is more gorgeous and aesthetic
The power junction box is enlarged, and more intelligent modules can be put in.
The gradienter is added on the fixture that it can test if the fixture is installed properly.
The Arm mounting support is changed, the outlet line is more simple and easy to operate, and the installation work can be completed by one person.
Fixture EPA
0.51-0.62 sq.ft (300W)
0.48-0.59 sq.ft (200W)
0.48-0.59 sq.ft (150W)
0.48-0.59 sq.ft (100W)
0.48-0.59 sq.ft (60W)
Lighting Distribution

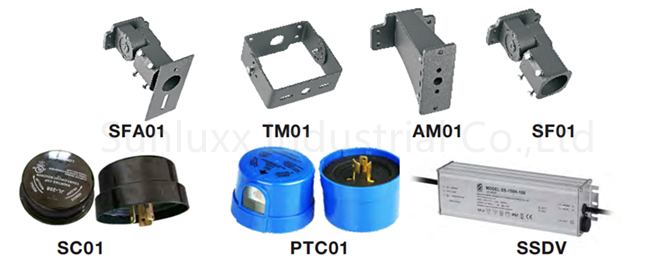

Three Mounting Accessories Options
Photocell Sensor is optional,It will be charged extra cost,If you need it,please notice us!

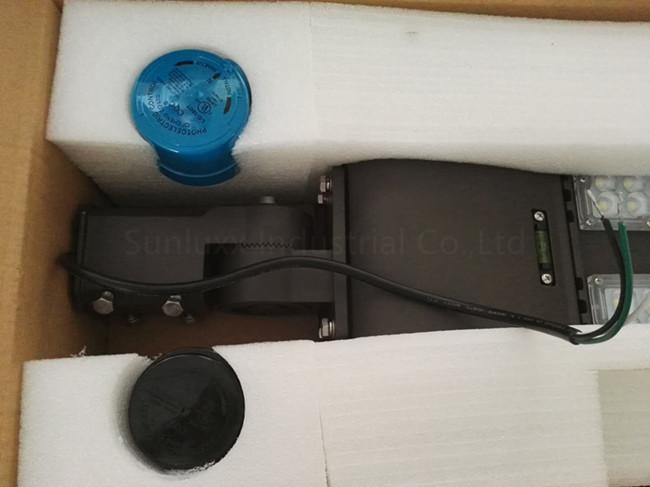

Packing Show
Delivery
