Outdoor Area Lighting LED Light Fixtures , Anti Typhoon Outdoor LED Floodlights
Anti Typhoon 240W 200W 150W 100W 75W LED Area Flood Lights For Outdoor Area Lighting
Features

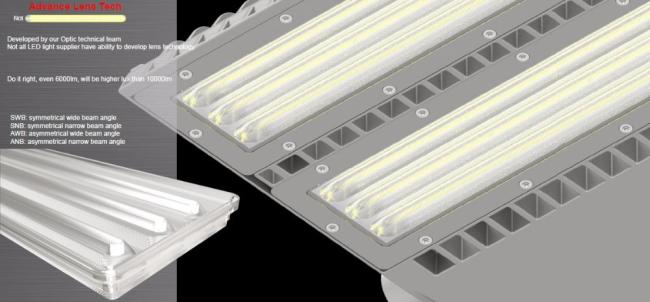

• Advanced lens technology with varoius angle, asymmetrical and symmetrical lens for different applications.

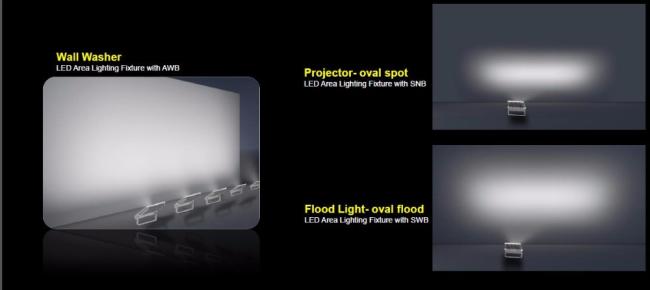

• Optic: SWB / symmetric wide beam angle, SNB / symmetric narrow beam angle, AWB / asymmetric wide beam angle, ANB / asymmetric narrow beam angle.
• Patented heat sink design, best heat dissipation technology.
• Using NICHIA 3030 SMD LEDs, better performance than LEDs.
• High lumen efficiency, 140lm/W, many other flood lights can only be 100-120lm/W
• IP66, IK10, water proof and durable, 5 years warranty.
• Anti typhoon: no deformation, loosening under wind tunnel test at the highest wind speed.
• Safe, energy-saving, no UV or IR radiation, no flickering / instant start up, no mercury.
• Long life of more than 50,000h, 5 years warranty.
Technich Data
| Power | 240W/200W/150W/100W/75W | |
| Input Voltage | 90 - 305VAC | |
| Input Current | 1.1A@220VAC /0.91A@220VAC /0.68A@220VAC / 0.45A@220VAC /0.34A@220VAC | |
| PF | >0.9@220VAC | |
| DC Output Voltage | 48V | |
| DC Output Current | 4.65A / 3.9A / 2.9A / 1.9A / 1.4A | |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI | |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized | |
| Ra>80,5000K | ||
| Efficiency | 130lm/W±10% | |
| Ra>70,5000K | ||
| Efficiency | 140lm/W±10% | |
| LED Brand | NICHIA 3030 | |
| Light Type | Asymmetric and symmetric polarized light | |
| Operation Temp. | -40 ℃ to + 45 ℃ | |
| Storage Temp. | -40 ℃ to + 85 ℃ | |
| Lifespan | 45℃ , 50,000 hours | |
| IP Class | 66 | |
| IK Class | 10 | |
| Lamp Body Color | Grey or as customized | |
| Product Size(mm) | 441*373*50 / 330*373*50 | |
| Packing size(mm) | 540*460*190 | |
| Gross Weight(kg) | 13.5 | |
| Product Quantity Per Carton | 2pcs | |
| Installation Method | Bracket Mount | |

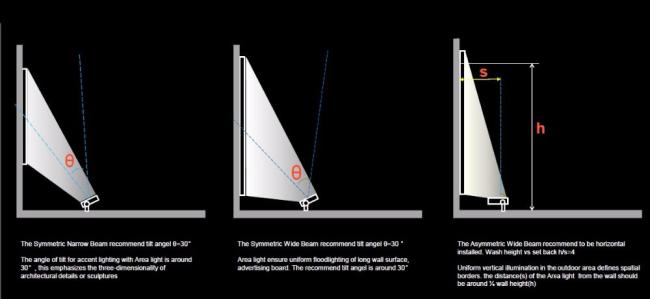

Beam Angle
ANB AWB SNB SWB
Installation Manual

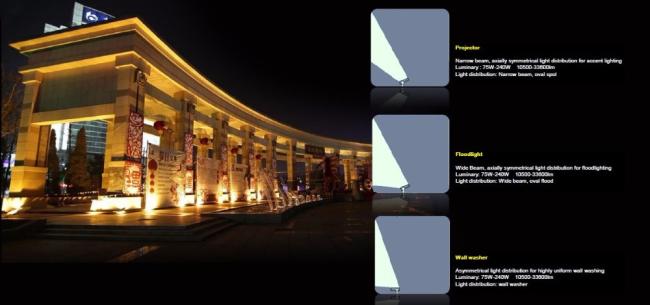

Applications
Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Sport Court Lighting.
