200W LED Flood Light Fixture , 28000LM Badminton Court Lighting LED Floodlight
High Performance Badminton Lighting 200W LED Area Flood Light , IK 10 , IP66 , 28000lm
Features
• Super bright NICHIA 3030 LED chips, high intensity and reliable, water proof high strength aluminum alloy housing, Ferrari ideal design.
• Energy saving, low power consumption, low temperature, long lifespan.
• Water proof IP66 grade, suitable for outdoor LED lighting application.
• Unique design aluminum die-casting fin heatsink, release the heat inside.
• MEANWELL driver, water proof, ensure the light working constant and stable
• Easy to install, operation and maintenance.
• no UV or IR radiation, no flickering / instant start up, no mercury.
• Strong Wind resistance, long life of more than 50,000h.
Technich Data
| Power | 200W | |
| Input Voltage | 90 - 305VAC | |
| Input Current | 0.91A@220VAC | |
| PF | >0.9@220VAC | |
| DC Output Voltage | 48V | |
| DC Output Current | 3.9A | |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI | |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized | |
| Ra>80,5000K | Typical Flux | 26000lm±10% |
| Efficiency | 130lm/W±10% | |
| Ra>70,5000K | Typical Flux | 28000lm±10% |
| Efficiency | 140lm/W±10% | |
| LED Brand | NICHIA 3030 | |
| Light Type | Asymmetric and symmetric polarized light | |
| Operation Temp. | -40 ℃ to + 45 ℃ | |
| Storage Temp. | -40 ℃ to + 85 ℃ | |
| Lifespan | 45℃ , 50,000 hours | |
| IP Class | 66 | |
| IK Class | 10 | |
| Lamp Body Color | Grey or as customized | |
| Product Size(mm) | 441*373*50 | |
| Net Weight(kg) | 6.37 | |
| Packing size(mm) | 540*460*190 | |
| Gross Weight(kg) | 13.5 | |
| Product Quantity Per Carton | 2pcs | |
| Installation Method | Bracket Mount | |
Product Size

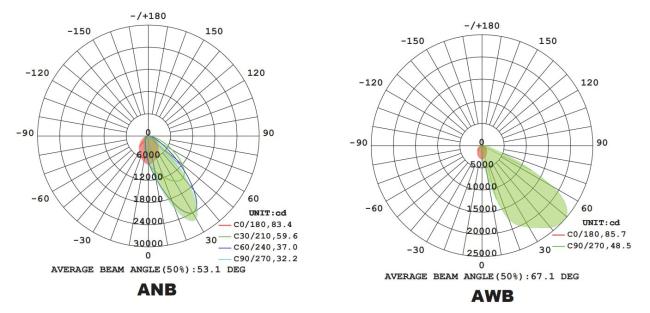

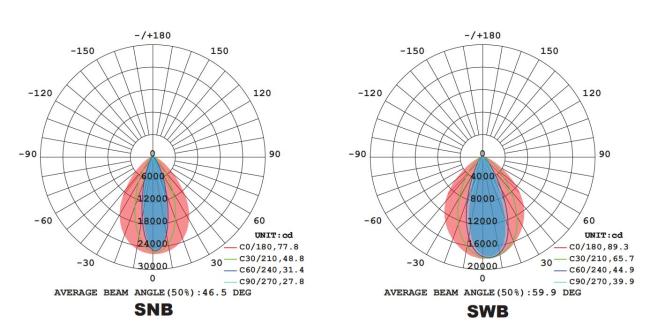

Beam Angle
ANB AWB SNB SWB
Installation Manual
Applications
Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Sport Court Lighting.
