IK10 IP66 Ferrari LED Area Flood Lights Smart Dimming Function Available
IK10 , IP66 , 33600LM 240W Ferrari LED Area Flood Light For Public Area Lighting
Features
• Integrated heat sink design, die-casting aluminum lamp body, excellent heat dissipation.
• NICHIA 3030 SMD LED chips, 140lm/W, Ra>80. Ra>70 standard.
• MEANWELL driver, long life and 5 years warranty.
• Smart dimming function available.
• High quality PC lens, high lighting efficiency.
• Flexible bracket, satisfy different mounting angle needs.
• IP65, IK10.
Technich Data
| Power | 240W | |
| Input Voltage | 90 - 305VAC | |
| Input Current | 1.10A@220VAC | |
| PF | >0.9@220VAC | |
| DC Output Voltage | 48V | |
| DC Output Current | 4.65A | |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI | |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized | |
| Ra>80,5000K | Typical Flux | 31200lm±10% |
| Efficiency | 130lm/W±10% | |
| Ra>70,5000K | Typical Flux | 33600lm±10% |
| Efficiency | 140lm/W±10% | |
| LED Brand | NICHIA 3030 | |
| Light Type | Asymmetric and symmetric polarized light | |
| Operation Temp. | -40 ℃ to + 45 ℃ | |
| Storage Temp. | -40 ℃ to + 85 ℃ | |
| Lifespan | 45℃ , 50,000 hours | |
| IP Class | 66 | |
| IK Class | 10 | |
| Lamp Body Color | Grey or as customized | |
| Product Size(mm) | 441*373*50 | |
| Net Weight(kg) | 6.37 | |
| Packing size(mm) | 540*460*190 | |
| Gross Weight(kg) | 13.5 | |
| Product Quantity Per Carton | 2pcs | |
| Installation Method | Bracket Mount | |

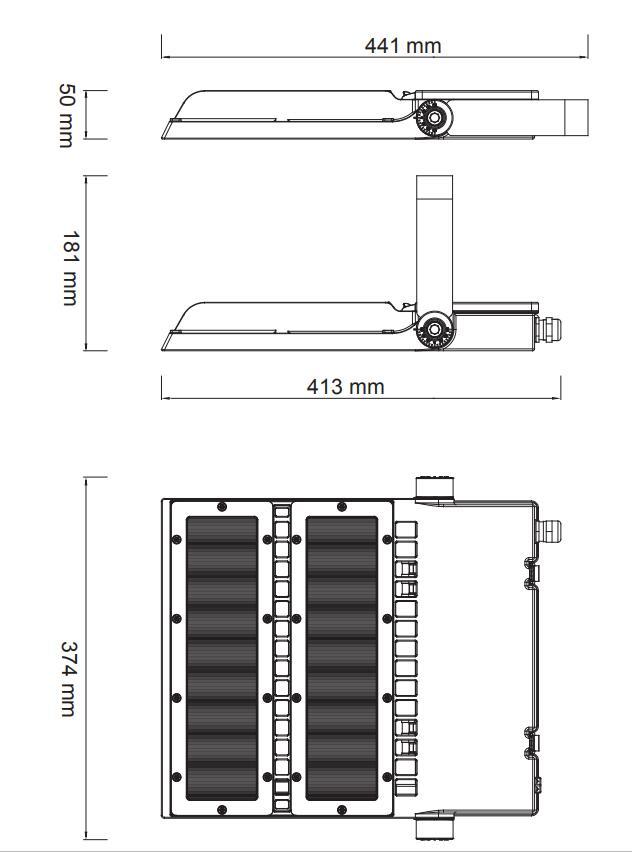

Product Size

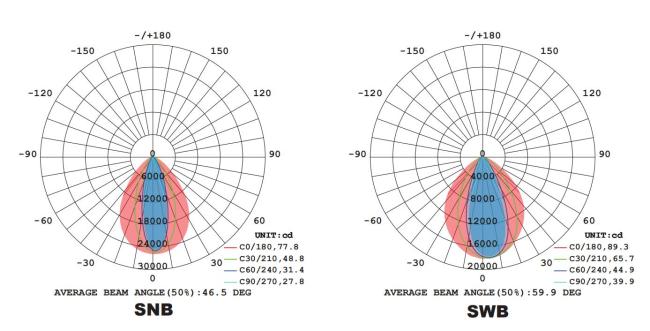

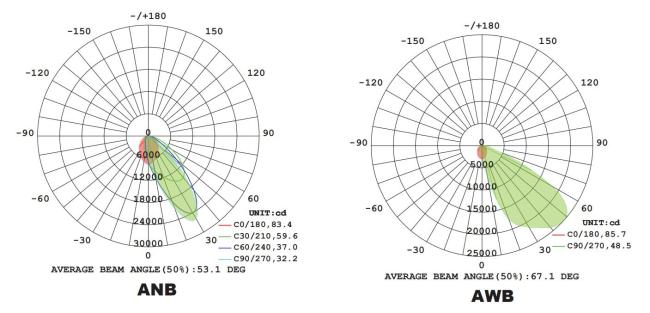

Beam Angle
ANB AWB SNB SWB

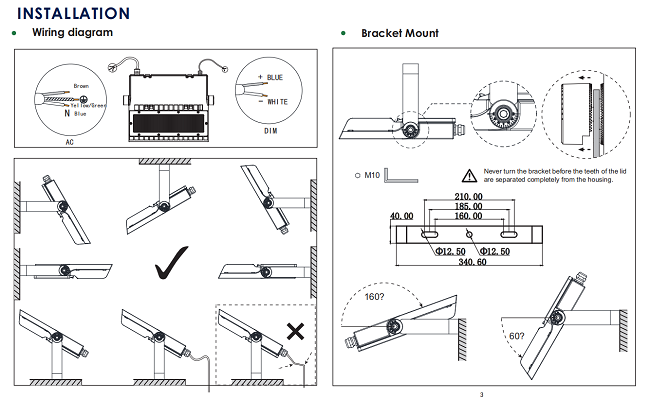

Installation Manual
Applications

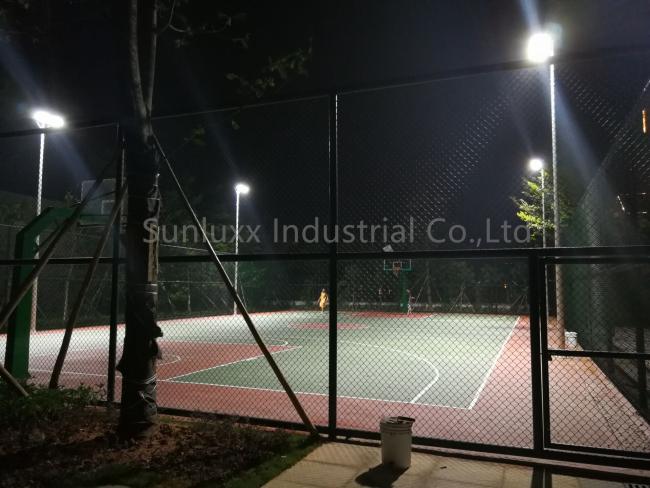

Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Sport Court Lighting.
