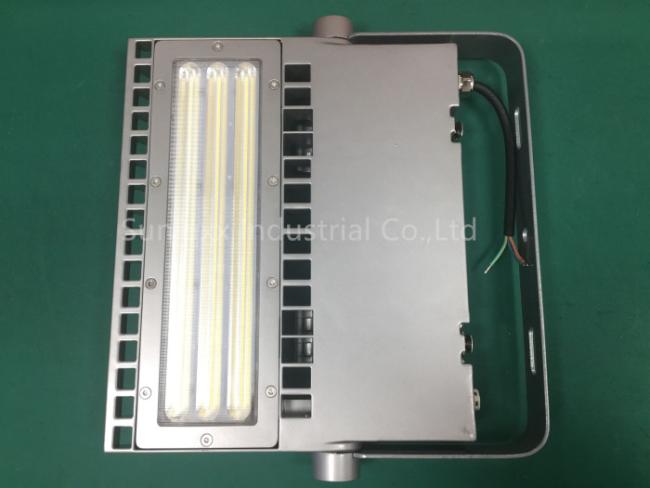

IK10 14000LM LED Stadium Flood Light 100W 200 - 305V AC Type CE / ROHS Approved
IK10 14000lm LED Stadium flood light 100W Area Flood Light , 200 - 305VAC , Europe Standard
Features
High quality NICHIA LED chips, Ra>80 or Ra>70 options, LM80 standard, high efficiency, long lifespan.
World famous brand MEANWELL driver, 5 years warranty.
Adjustable bracket mounting, can meet various of places lighting.
Waterproof IP67 joint, all accessaries are waterproof and anti-corrosion.

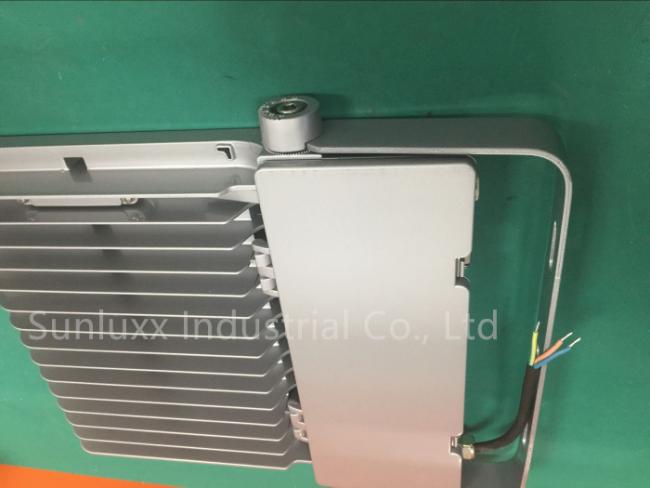

Aluminum die-casting lamp body and integrated heat sink, perfect air convection and heat dissipation.
The junction box is easy to open and maitanence.
IP66, IK10, 18 level strong wind resistance, suitable for kinds of area lighting applications.
Product Details
| Power | 100W | |
| Input Voltage | 90 - 305VAC | |
| Input Current | 0.45A@220VAC | |
| PF | >0.9@220VAC | |
| DC Output Voltage | 48V | |
| DC Output Current | 1.9A | |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI | |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized | |
| Ra>80,5000K | Typical Flux | 13000lm±10% |
| Efficiency | 130lm/W±10% | |
| Ra>70,5000K | Typical Flux | 14000lm±10% |
| Efficiency | 140lm/W±10% | |
| LED Brand | NICHIA 3030 | |
| Light Type | Asymmetric and symmetric polarized light | |
| Operation Temp. | -40 ℃ to + 45 ℃ | |
| Storage Temp. | -40 ℃ to + 85 ℃ | |
| Lifespan | 45℃ , 50,000 hours | |
| IP Class | 66 | |
| IK Class | 10 | |
| Lamp Body Color | Grey or as customized | |
| Product Size(mm) | 330*373*50 | |
| Net Weight(kg) | 4.76 | |
| Packing size(mm) | 540*460*190 | |
| Gross Weight(kg) | 13.5 | |
| Product Quantity Per Carton | 2pcs | |
| Installation Method | Bracket Mount | |
Beam Angle
Accessories
Light Distribusion Curve
Installation Manual
Applications
Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting
