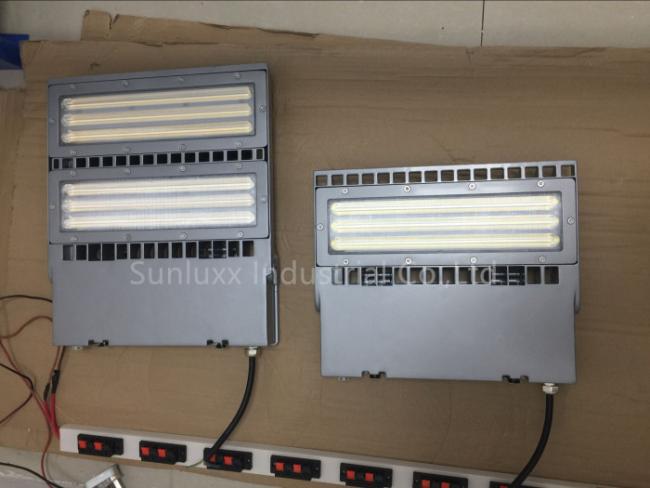

140LM/W 75W LED Sport Court Lighting Fixtures , IK10 IP66 LED Stadium Lights
High Effeiciency IK10 75W LED Stadium Flood Light , IP66 , 5 Years Warranty
Features
1. 140lm/W high brightness , stable performance long longevity and low power consumption
2. Stable current , by high efficient and wide voltage constant current driver
3. Mounting bracket can be rotated 180 degrees to facilitate the installation
4. It provides even, bright illumination across a wide area
5. Waterproof design, ideal even for outdoor use
6. IP66, IK10 protection, strong wind resistance, Ferrari Idea design make it higher performance.
7. 5 years warranty.
Technical Data
| Power | 75W | |
| Input Voltage | 90 - 305VAC | |
| Input Current | 0.68A@220VAC | |
| PF | >0.9@220VAC | |
| DC Output Voltage | 48V | |
| DC Output Current | 2.9A | |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI | |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized | |
| Ra>80,5000K | Typical Flux | 19500lm±10% |
| Efficiency | 130lm/W±10% | |
| Ra>70,5000K | Typical Flux | 21000lm±10% |
| Efficiency | 140lm/W±10% | |
| LED Brand | NICHIA 3030 | |
| Light Type | Asymmetric and symmetric polarized light | |
| Operation Temp. | -40 ℃ to + 45 ℃ | |
| Storage Temp. | -40 ℃ to + 85 ℃ | |
| Lifespan | 45℃ , 50,000 hours | |
| IP Class | 66 | |
| IK Class | 10 | |
| Lamp Body Color | Grey or as customized | |
| Product Size(mm) | 330*373*50 | |
| Net Weight(kg) | 4.76 | |
| Packing size(mm) | 540*460*190 | |
| Gross Weight(kg) | 13.5 | |
| Product Quantity Per Carton | 2pcs | |
| Installation Method | Bracket Mount | |
Beam Angle
Accessories
Light Distribusion Curve
Installation Manual
Applications
Side Walk Lighting, Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting.
