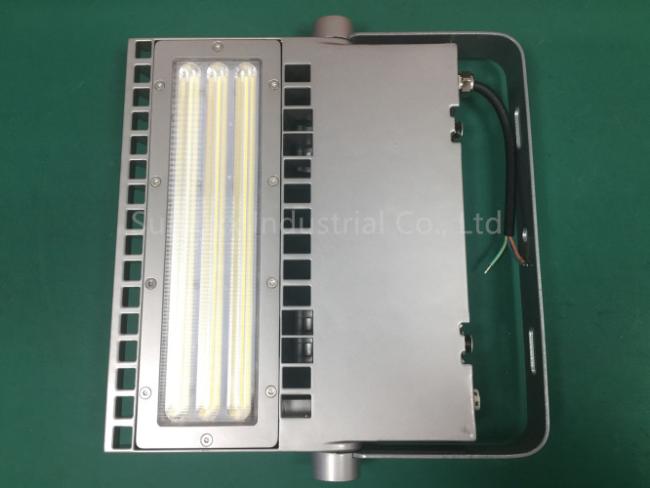

IP66 150W LED Stadium Flood Light IK10 Storm Resistant For Outdoor Lighting
5 Years Warranty IP66 150W LED Stadium flood light IK10 Storm Resistance Outdoor Lighting
Features
1. Unique design,professional lighting distribution.
2. World Famous Japan NICHIA LED,more stable and bright performance.
3. SOSEN driver, IP66 waterproof and 5 years warranty.
4. Professional beam angle:ANB,AWB,SNB,SWB for choice.

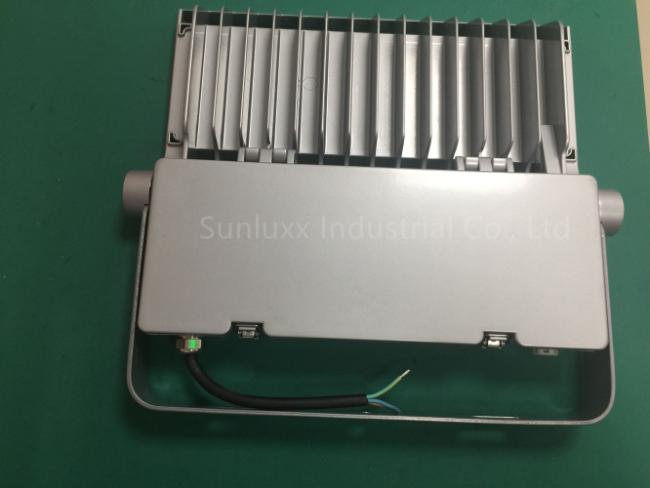

5. The heat sink is Die-casting aluminum, good at heat dissipation.
6. High lumen,high quality, green and low consumption.
7. Professional design,independent research and development.
8. Very strong ability for wind resistance, can resist the typhoon.
9. Excellent cooling system, heat dissipation faster and better.
10. Surface spraying process is used to ensure the light will never corrode;
11. The waterproof grade is IP66, which can easily resist the water in rainy day.
Product Details
| Power | 150W | |
| Input Voltage | 90 - 305VAC | |
| Input Current | 0.68A@220VAC | |
| PF | >0.9@220VAC | |
| DC Output Voltage | 48V | |
| DC Output Current | 2.9A | |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI | |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized | |
| Ra>80,5000K | Typical Flux | 19500lm±10% |
| Efficiency | 130lm/W±10% | |
| Ra>70,5000K | Typical Flux | 21000lm±10% |
| Efficiency | 140lm/W±10% | |
| LED Brand | NICHIA 3030 | |
| Light Type | Asymmetric and symmetric polarized light | |
| Operation Temp. | -40 ℃ to + 45 ℃ | |
| Storage Temp. | -40 ℃ to + 85 ℃ | |
| Lifespan | 45℃ , 50,000 hours | |
| IP Class | 66 | |
| IK Class | 10 | |
| Lamp Body Color | Grey or as customized | |
| Product Size(mm) | 330*373*50 | |
| Net Weight(kg) | 4.76 | |
| Packing size(mm) | 540*460*190 | |
| Gross Weight(kg) | 13.5 | |
| Product Quantity Per Carton | 2pcs | |
| Installation Method | Bracket Mount | |
Beam Angle
Accessories
Light Distribusion Curve
Installation Manual
Applications
Garden Lighting,Park Lighting,Billboard Lighting,Landscape Lighting,Building Lighting,Stadium Lighting
