Factory Lighting Use 80 Watt LED Corn Bulb , 10400LM 100 - 277V AC Corn Cob LED Lamps
10400LM 80W LED Corn Cob Bulb Lights 100 - 277VAC For Factory Lighting
Features
1. Energy saving for LED Corn light:low power consumption, low heat, high level of brightness, uniform light-emitting.
2. Long lifespan:the normal lifespan of LED Corn light is above or equal to 50.000H.
3. No twinkling for LED Corn light: rapid start, steady work, no noise, no twinkling can effectively protect the eyes.
4. Green and environmentally-friendly: LED Corn light has no ultraviolet or infrared radiation, containing no mercury, lead and heavy metal.
5. Special circuit design for LED Corn light: ensuring that each LED to work independently, the damage of single LED has no influence on the whole.
6. Warranty time : 5 years.
7. Color rendering index(CRI)is optional , Ra70 or Ra>80.
Technical Data
Electrial Data
| Input Voltage | 100-277VAC 50/60 Hz | THD | <15 |
| Wattage | 80W | Power Factor | >0.95 |
Photomitrical Data
| Lens | Milky Lens | Transparent Lens | Without Lens |
| Rated Luminous Flux | 8800LM±4% | 9600LM±4% | 10400LM±4% |
| Luminuos Efficiency | 110LM/W | 120LM/W | 130LM/W |
| Color Rendering Index | Ra>80 Ra>70 | ||
| Color Temperature | 2700-3500K, 4000-4500K, 5000-5500K, 6000-6500K | ||
Light Technical Data
| LED Type | Epistar | Max Temperature $ Ta=25℃% | Tmax=57℃ |
| LED QTY | 728PCS | Thermal Protection(Half-Power) | 95Ⅱ |
| Beam Sbreads | 360° | Power Recovrey Temperature | 50Ⅱ |
| Starting Time | <0.5s | Operating Temperature $Abient% | -40°C~45°C |
| Dimming | No | Storage Temperature | -40°C~85°C |
| Life Time | 50,000h | Warranty | 5 years |
Light Distribution Diagram
Replacement
Installation
Wiring Diagram

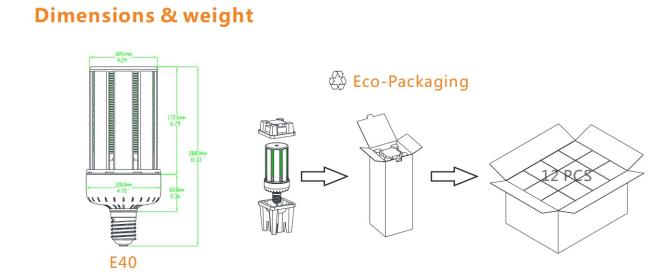

Product Dimension And Packing
Application
