IP66 Warehouse Lamp LED High Bay Warehouse Lighting Fixture 26000Lm 130Lm/w 200W
26,000Lm 130Lm/W 200W High Bay Industrial Lighting IP66 LED Warehouse Lamp
Features of 200W LED UFO Warehouse Light
1.Unique design with private tooling, fashionable and modern model
2.Newly designed motion sensor located in the middle of luminarie, save much installation cost
3.Latest optics lens clip on structure, Free-of-screws design, with 95% higher transmittance water wave lens
4.Dust-free new lamp housing will help to release heating much faster as well as to improve
the heat-sink system
5.60/90/120 degree IES distribution selection, national listing lab tested with IES standard
Product details
| Product code AHBL-100W AHBL-150W AHBL-200W | |||
| Power | 100W | 150W | 200W |
| Input Voltage | 90-305VAC | ||
| Input current | 0.45A | 0.68A | 0.91A |
| PF | >0.90 | ||
| Dimming | 0-10V,PWM | ||
| CCT | 3000K,4000K,5000K,5700K | ||
|
2835SMD Typical Flux |
13000Lm | 19500Lm | 26000Lm |
|
3030SMD Typical Flux |
16000Lm | 24000Lm | 32000Lm |
| LED Brand | OSRAM / CREE/LUMILEDS | ||
| Beam Angle | 60/90/120 Degree | ||
| Operation Temp. | -40℃~+45℃ | ||
| Storage Temp. | -40℃ ~ +85℃ | ||
| Life Span | 50000Hours | ||
| IP Class | IP66 | ||
| IK Class | IK08 | ||
| Certificate | CE,RoHs | ||
| Body Color | Black (RAL9005) | ||
| Net weight (kg) | 2.44 | 3.11 | 3.59 |
| Gross weight (kg) | 3 | 3.85 | 4.47 |
| Installation mode | HookPoleBracket Mount | ||
Sunluxx Warranty
1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.
3. Warranty does not cover damages caused by abuse, misuse,improper environmental conditions, natural disaster,wrong installation,etc.
Sunluxx focus on providing professional LED lighting solutions.
Please feel free to contact us:a.order@sunluxx.net.We are so happy to serve you.

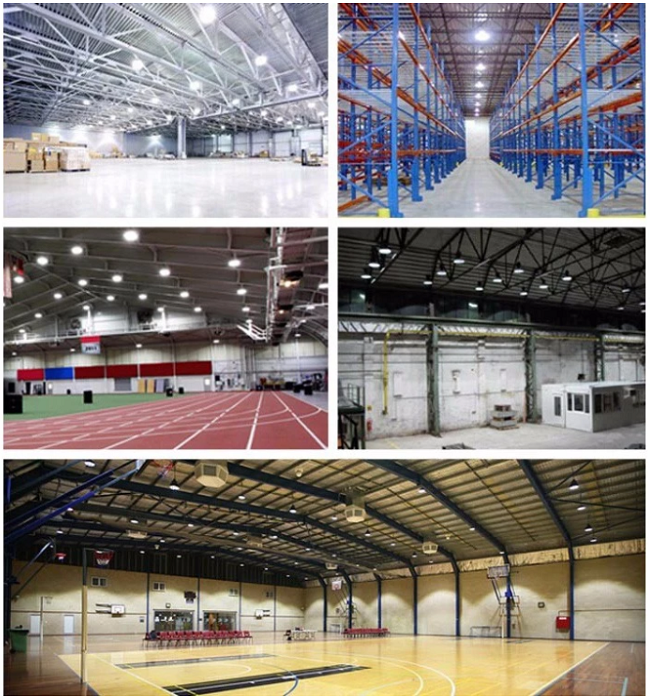

Applications
