High Lumen 480 W High Bay Led Lights Good Heat Dissipation 5 Years Warranty
CE,ROHS Approval 480 W LED Module High Bay Light 140LM/W For Factory Areas High Performance
Quick Information
| Model Number | SLX-EMA-480 |
| Voltage | AC100-277V,50/60Hz |
| CRI | >70 |
| CCT | WW-3000K, NW-4000K, PW-5000K ,CW-5700K |
| LED chips | LUMILEDS 3030 |
| Driver | Brand Sosen |
| Power | 480W |
| Lumens Flux | 67200Lm |
| Luminance Efficiency | 140Lm/W |
| Power Factor | >0.95 |
| Beam Angle | 60°, 90°,120°,100×140° |
| Lifetime | 50,000+hours |
| IP Rating | IP66 |
| Material | Aluminum Fin heat sink+stainless steel |
| Certification | CE,ROHS |
| Lead time | Sample:3-5 work days, Mass Production: 15-30days |
| Housing | Die-Casting Aluminum |
| LENS | Ploycarbonate |
| Operating Temp: | -40 degree to +45 degree |
| Application | Badminton court lighting |
Adjustable Angle Design
Bracket with calibration can accurately adjust the lighting angle.
A variety of adjustable angle design, truly achieve lighting as your wish.
Multi-angle adjustment mode maximally meets the special needs of engineering lighting
Folding Fins Radiator
1060 pure aluminum heat sink is tightly attached to the 2.0 cooling plate by a riveting process, arranged in a
matrix to increase the heat dissipation area. Hollow-carved design increases convection cooling efficiency.
Application
|

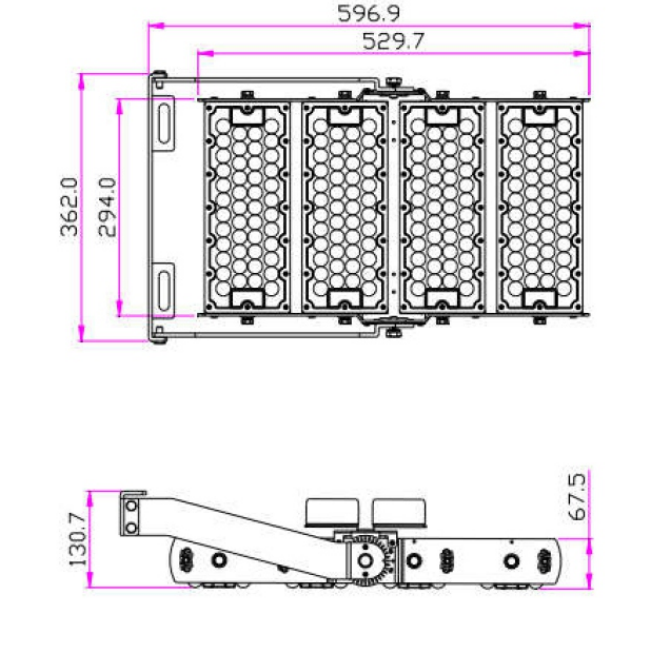

Dimensions

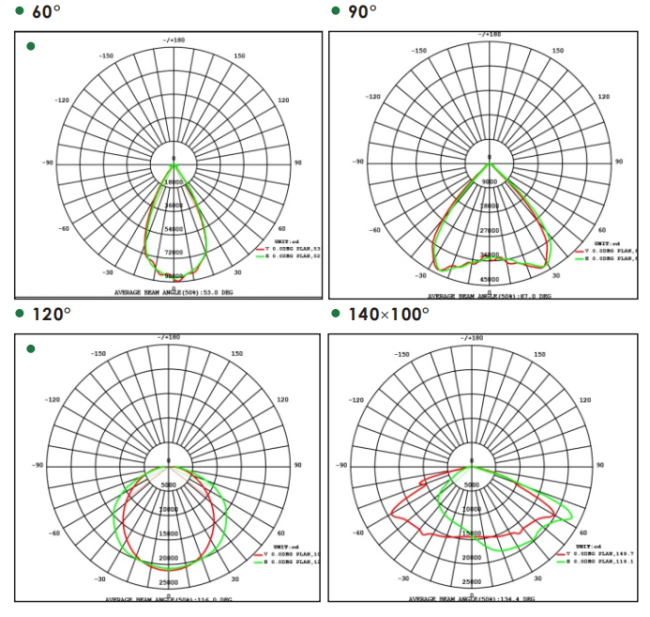

Photometrics
Bracket installation way
Why Choose Sunluxx?
|
1. Volume production, fast delivery, reliable quality; |
