140LM/W Dimmable High Bay Led Lighting CE ROHS Approval With Bracket Installation
High Power High Lumen 960 W LED Module High Bay Light Unique Designed
Quick Information
| Model Number | SLX-EMB-960 |
| Voltage | AC100-277V,50/60Hz |
| CRI | >70 |
| CCT | WW-3000K, NW-4000K, PW-5000K ,CW-5700K |
| LED chips | LUMILEDS 3030 |
| Driver | Brand Sosen |
| Power | 960W |
| Lumens Flux | 67200Lm |
| Luminance Efficiency | 140Lm/W |
| Power Factor | >0.95 |
| Beam Angle | 60°, 90°,120°,100×140° |
| Lifetime | 50,000+hours |
| IP Rating | IP66 |
| Material | Aluminum Fin heat sink+stainless steel |
| Certification | CE,ROHS |
| Lead time | Sample:3-5 work days, Mass Production: 15-30days |
| Housing | Die-Casting Aluminum |
| LENS | Ploycarbonate |
| Operating Temp: | -40 degree to +45 degree |
| Application | Badminton court lighting |

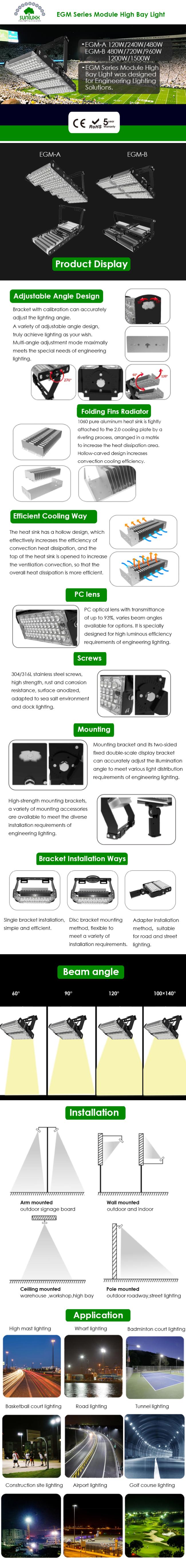

Product Detail
1) EGM Series Module High Bay Light was designed for Engineering Lighting Solution
2) Hollow-carved design increases convection cooling efficiency.
3) PC optical lens with transmittance of up to 93%, varies beam angles available options. It is specially designed for high luminous efficiency requirements of engineering lighting.
4) With mounting bracket and its two-sided fixed double-scale display bracket can accurately adjust the illumination angle to meet different light distribution requirements of engineering lighting.
1.We are the manufacturer, we insist to do the high quality products, we try save the cost from the productive process. The same price, please compared the quality with others; The same quality,please compared price with others.
2.Have more than 30,000 sets EGB light and electricity light installation projects experience.
3. Always give our customer a workable solution with our professional engineer in optical and electricity.
4. We have export to over 40 countries with rich export experience

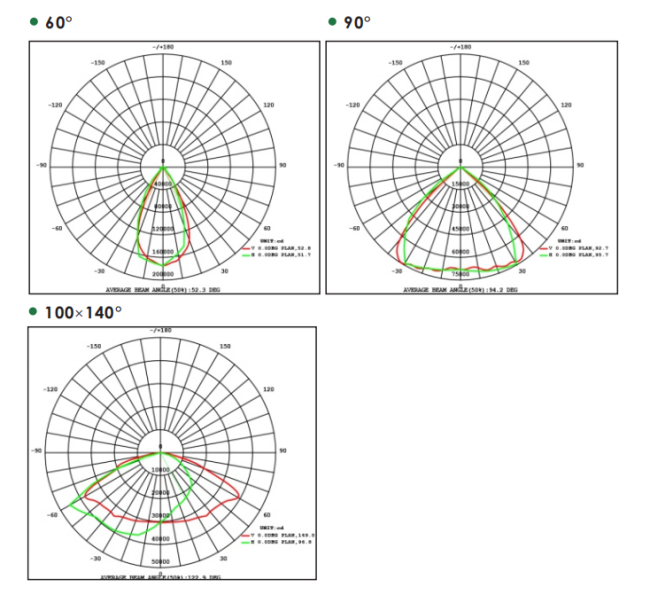

Photometrics
Bracket installation way
