160 LMW LED High Bay Warehouse Lighting Fixture 120W Cold Storage SAA NSF Certificated
160 LM/W Food Grade High Bay Light 120W LED High Bay Cold Storage Lighting Fixture SAA,NSF Certificate
NSF Food High Bay Light Parameters
| Item Number | CHBL-120 |
| Power | 120W |
| Input Voltage | 90-305VAC |
| Input Current | 0.47A@220VAC |
| PF | >0.90@220VAC |
| Dimming Option MOSO | 2 in 1 dimming (PWM, 0-10V) |
| Dimming Option
Meanwell |
3 in 1 dimming (PWM, 0-10V, Resistor) / Dali |
| Ra>80
Luminous Flux |
16800Lm |
| Ra>70
Luminous Flux |
19200Lm |
| LED Brand | Cree SMD 3030 / LUMILEDS 3030 |

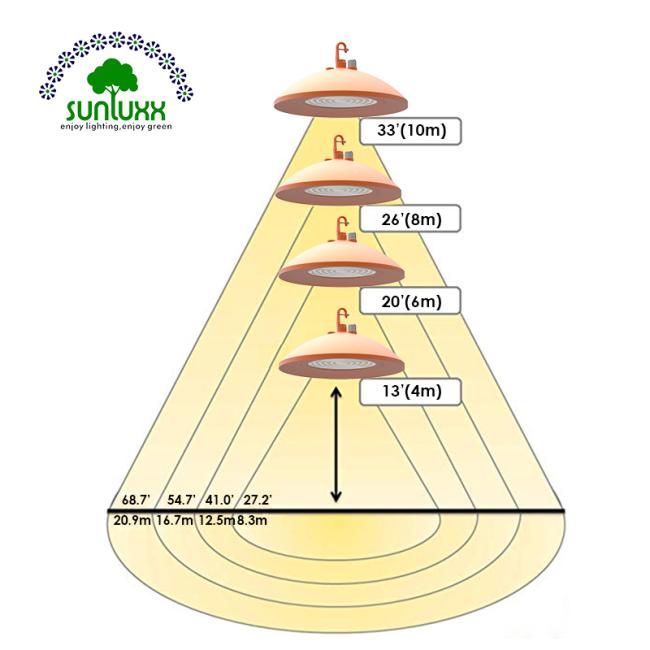

| Beam Angle | 60°90°120° |
| Operation Temp | -40℃ ~ +45℃ |
| Storage Temp | -40℃ ~ +85℃ |
| Lifespan | 25℃ 50000Hours |

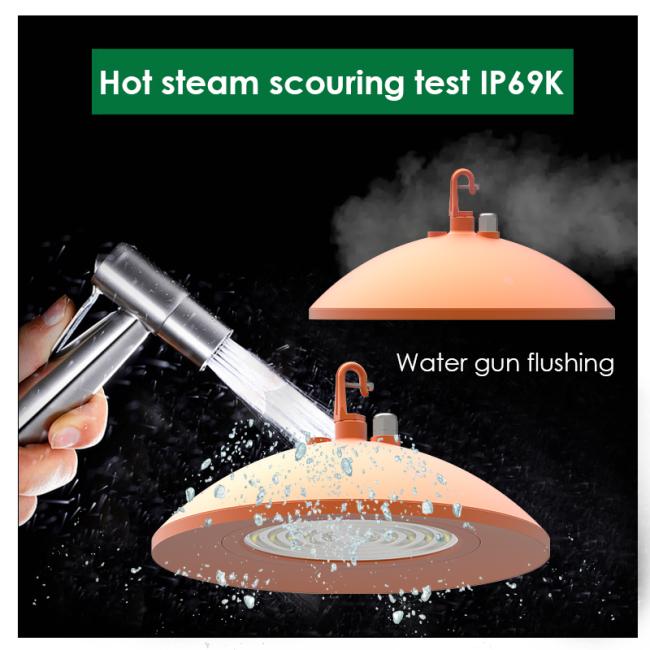

| IP rating | IP69K |
| IK rating | IK10 |
| Certificates | ETL, CE,SAA,ROHS,NSF |
| Lamp Body Color | Orange( RAL2004) |
| Product Size(mm) | 480*480*220 |
| Gross Weight(kg) | 6.8kg |
| Installation Way | Hook Mount/Pendant Mount |
| Housing | Die-Casting Aluminum |
Features of LED Food High Bay Fixture
- Smooth design, no glass and NSF rated materials with safety performance.
- Die-Cast Aluminum cooling good heat dissipation
- Super Brightness, >160LM/W
- IP65 rated , stronger corrosion-resistant & anti-aging performance
- 0-10v dimming , DALI system control options
- New type led high bay application for food processing lighting area.
- 100w/120w/150w/120w are available.
- 100-277V
- 60°/90°/120° beam angle optional
- 4KV/6KV surge protection over temperature protection
- 304 stainless steel hook & Safe rope
- 5 years warranty
- The front surface is clean, no screws no silicone sleeve on that.
NSF Food High Bay Light Installation & Application
NSF Food High Bay Light has two installation way, one is pendant, the other one is hook.
It can be widly used in below area:
- Cold Storage
- Workshop
- Food Storage
- Bread Factory
- Meat Processsing plant
- Industrial Area
Why choose LED from Sunluxx ?
Our service
1.OEM & ODM are offered.
2.Professional R&D engineer.All your questions will be replied in 24 hours.
3.Distributorship is offered for your unique design and some our currect models.
4.Protection of your sales area,Ideas of design and all your private information.
5.If the oder more than 500pcs,we will return back the payment of samples.
Reliability
1.As long as 72h aging test with automatic switching before each shipment.
2.100% vibratility test will make sure the fastness of the assembling.
3.100% resist voltage test makes sure those tubes compatible for both 100v 277v.
4.More than 95% lumen maintenance based on the 6000h LM-80-08 test
5.-40°C to 50°C(-40°F to 122°F) extreme environment compliant.
Trade Terms
- Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
- Production lead time for 100~500pcs: 7days, 500~1000pcs:10days
- Sample can be delivered in 3 days
- Shipping port: SHENZHEN
- Discounts are offered based on order quantities
