150LM/W LED High Bay Warehouse Lighting Fixture Hook Pendant With MOSO Driver
UFO Food Grade High Bay Light 150LM/W LED High Bay Lighting Fixture Hook and Pendant with MOSO driver
NSF Food High Bay Light Parameters
| Item Number | CHBL-100 |
| Power | 100W |
| Input Voltage | 90-305VAC |
| Input Current | 0.47A@220VAC |
| PF | >0.90@220VAC |
| Dimming Option MOSO | 2 in 1 dimming (PWM, 0-10V) |
| Dimming Option Meanwell | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali |
| Ra>80 Luminous Flux | 14000Lm |
| Ra>70 Luminous Flux | 16000Lm |
| LED Brand | Cree SMD 3030 / LUMILEDS 3030 |
| Beam Angle | 60°90°120° |
| Operation Temp | -40℃ ~ +45℃ |
| Storage Temp | -40℃ ~ +85℃ |
| Lifespan | 25℃ 50000Hours |
| IP rating | IP69K |
| IK rating | IK10 |
| Certificates | ETL, CE,SAA,ROHS,NSF |
| Lamp Body Color | Orange( RAL2004) |
| Product Size(mm) | 480*480*220 |
| Gross Weight(kg) | 6.8kg |
| Installation Way | Hook Mount/Pendant Mount |
| Housing | Die-Casting Aluminum |
Photometrics

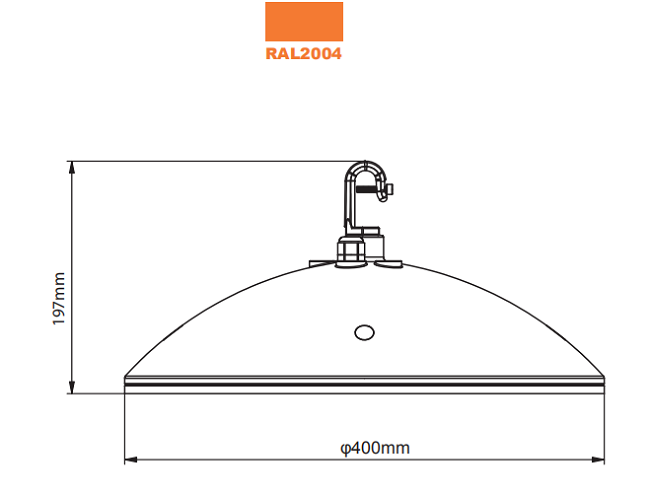

Product Dimension
Features of LED Food High Bay Fixture
1.This Food High bay light Luminous efficacy can reach 150LM/W This
2.This product's Wattage had 100W, 120W, 150W for option
3.This product is mainly be used in clean food/ pharmaceutical and any other manufacture plant
4.Rated Life: 50,000hrs Warranty: 5years
5.This light had CE, RoHS ,SAA,NSF,ETL Certificate.
6.Modern lens design offers multiple beam angles: 60°/90°/120°
7.IP65 rating is ideal for chanllenging environments.
8.The product surface coating get REACH/ROHS/HALOGEN test report by SGS
9. This UFO Food High Bay Light has two driver brand for option,
NSF Food High Bay Light Installation
NSF Food High Bay Light has two installation way, one is pendant, the other one is hook.
Application
NSF LED food High bay Light can be widly used in below area:
- Bread plant
- Pharmaceutical plant
- Food processing factory
- Milk processing plant
- Meat Processsing plant
- Cold storage
FAQ
Q1. Can I have a sample order for LED food high bay industrial light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:We hold stock for raw materials, such as housing, LED chip, driver etc. 1-3 days for sample, 5-7 days for Qty. below 200pcs, 7-15 days above 300pcs.
Q3. Do you have any MOQ limit for LED food high bay industrial light order?
A: Low MOQ, 1pc for sample checking is available
Q4. What kind of certificates do you have for your LED food high bay industrial light ?
A: CE, ROSH,SAA,
Q5. How to proceed an order for LED food high bay industrial light ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on high quality led food industrial high bay light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8:What color temperature are optional?
A: 4000K/5700K is standard for industrial use; 5000K is an option.
Sunluxx After-sales Service
1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.
