100-277V LED High Bay Warehouse Lighting Fixture CRI 80 NSF Food Grade Various Beam Angle
100-277V,CRI 80,UFO Food Grade LED High Bay Light With MOSO Driver Various Beam Angle for Option

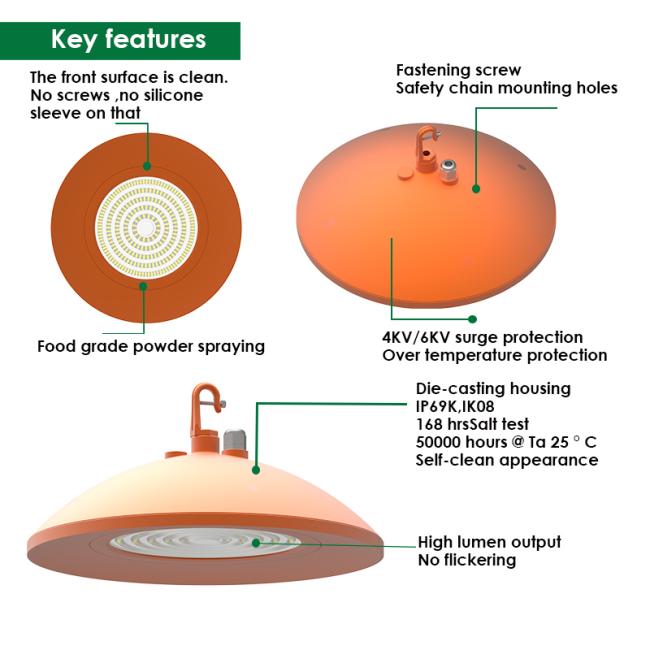

NSF UFO Food Grade LED High Bay Light Features
- NSF/CE/Rosh/Certification, safety and modern design.
- Food grade UFO light -NSF Certification
- The color of the lamp housing is using orange RAL2004
- We have Meanwell and MOSO brands drivers for optional both
- Good Heat dissipation.
- 45°/90°/120° three different beam angle for you to choose.
- 70/80 CRI optional Ip65 & IP69(K),can be washed directly.
- This products using 304 stainless steel hook & Safe rope
- For this type of LED, we provide 5 years warranty
- The lens has been applied for patent and patent fillings by Chinese custom.The record number is P2018-72651
- This Food High bay light Luminous efficacy can reach 150LM/W
NSF Food High Bay Light Parameters
| Item Number | CHBL-120 |
| Power | 120W |
| Input Voltage | 90-305VAC |
| Input Current | 0.57A@220VAC |
| PF | >0.90@220VAC |
| Dimming Option MOSO | 2 in 1 dimming (PWM, 0-10V) |
| Dimming Option Meanwell | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali |
| Ra>80 Luminous Flux | 16800Lm |
| Ra>70 Luminous Flux | 19200Lm |
| LED Brand | Cree SMD 3030 / LUMILEDS 3030 |
| Beam Angle | 60°90°120° |
| Operation Temp | -40℃ ~ +45℃ |
| Storage Temp | -40℃ ~ +85℃ |
| Lifespan | 25℃ 50000Hours |
| IP rating | IP69K |
| IK rating | IK10 |
| Certificates | ETL, CE,SAA,ROHS,NSF |
| Lamp Body Color | Orange( RAL2004) |
| Product Size(mm) | 480*480*220 |
| Gross Weight(kg) | 6.8kg |
| Installation Way | Hook Mount/Pendant Mount |
| Housing | Die-Casting Aluminum |
Photometrics
Product Dimension

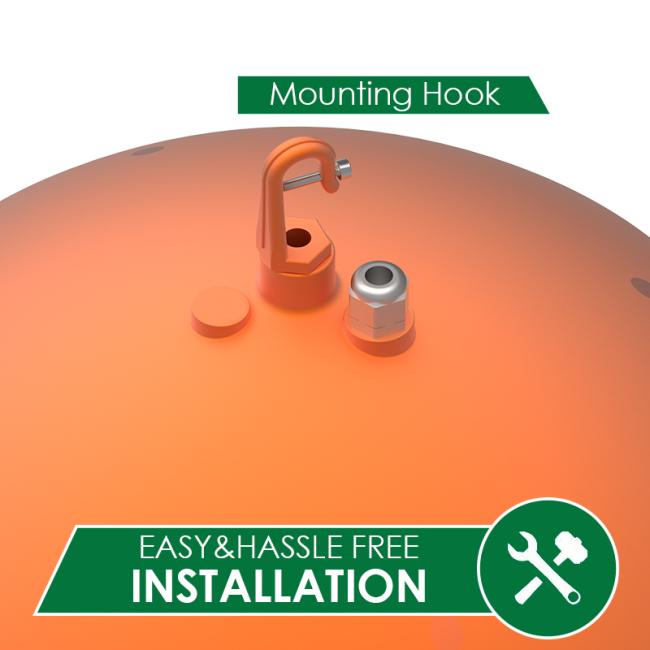

NSF Food High Bay Light Installation
NSF Food High Bay Light has two installation way for you to choose, The first one is hook, the second one is Pendant.
This choice depend on customer's need. We will confirmed this information with you before order.

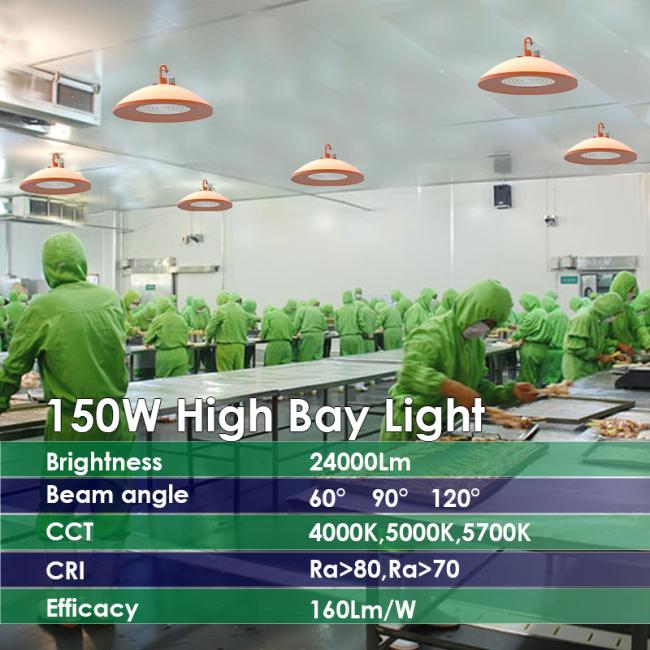

Application
NSF LED food High bay Light is mainly be used in clean food/ food manufacturer plant and other places as below:
- Meat processing plant
- Pharmaceutical factory
- Milk processing factory
- Workshop
- Fruit plant
- Cold storage
Sunluxx Service
1. If we have the honor to serve you , we will provide 7X24hours service.
2. We will make full range of record for the lamps you ordered in our company , and make sure that you could order the exactly same products continuously .
3.Quality is our life. Every of your order will be taken very seriously, no matter big or small.
4. Your request is the direction of our efforts. If you have any new ideas or designs, our engineer will make it real.
5. Once the lead time is agreed, we never delay .
After-sales Service
1. The products of Sunluxx's warranty time is 5 years and effected from the date of original purchase.
2. Kindly be attention that warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) If confirmed driver is failed, we will send you the new driver.
(2) If confirmed that is LED board broken, we will send you New LED board.
(3) The other new replacement will be sent with the new order depend on the level of damage or the specific causes of defectives.
