13000Lm LED High Bay Warehouse Lighting Fixture 100W 0-10V Optical Lens With Moso Driver
13000Lm Led High Bay Industrial Lighting Fixture 100W Dimmable 0-10V Optical lens With Moso Driver
Features of 100W AHBL High Bay UFO LED Light
- Hollow heat sink design increase more airflow for better heat dissipation
- 5Years Warranty Guarantee.
- Dust-free and Die-Casting aluminum lamp housing,Good for releasing heating.
- 95% higher transmittance water wave lens, Without screw design,more fashion.
- The motion sensor is in the middle of luminarie,No need to pay extra installation cost.
- 60/90/120 degree IES distribution for you to choose.
- Waterproof IP65 design, suitable to damp & wet location.
Product details
| Product code AHBL-100W AHBL-150W AHBL-200W | |||
| Power | 100W | 150W | 200W |
| Input Voltage | 90-305VAC | ||
| Input current | 0.45A | 0.68A | 0.91A |
| PF | >0.90 | ||
| Dimming | 0-10V,PWM | ||
| CCT | 3000K,4000K,5000K,5700K | ||
|
2835SMD Typical Flux |
13000Lm(130lm/W) | 19500Lm(130lm/W) | 26000Lm(130lm/W) |
|
3030SMD Typical Flux |
16000Lm(160lm/W) | 24000Lm(160lm/W) | 32000Lm(160lm/W) |
| LED Brand | OSRAM / CREE/LUMILEDS | ||
| Beam Angle | 60/90/120 Degree | ||
| Operation Temp. | -40℃~+45℃ | ||
| Storage Temp. | -40℃ ~ +85℃ | ||
| Life Span | 50000Hours | ||
| IP Class | IP66 | ||
| IK Class | IK08 | ||
| Certificate | CE,RoHs | ||
| Body Color | Black (RAL9005) | ||
| Net weight (kg) | 2.44 | 3.11 | 3.59 |
| Gross weight (kg) | 3 | 3.85 | 4.47 |
| Installation mode | HookPoleBracket Mount | ||
UFO LED High bay light application
UFO led high bay light can be used in various occation:
Warehouses, Manufacturing Facilities Gymnasi-ums, Aviation Hangars, Convention Centers, Big Box Retail Stores, Cold Storage Facilities.

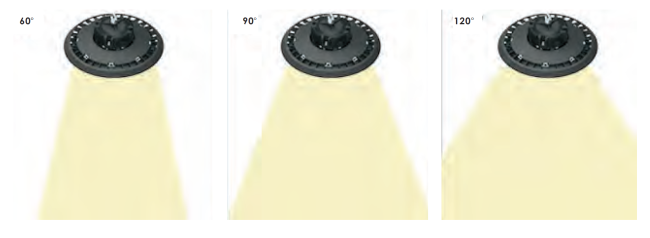

LED High Bay Light Beam Angle
LED UFO high bay fixtures are ideal for Beam angle
60/90/120 degree IES distribution selection , national listing lab tested.
Sunluxx Warranty
1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.
3. Warranty does not cover damages caused by abuse, misuse,improper environmental conditions, natural disaster,wrong installation,etc.
