Plastic Plug 3-12pole Circular Auto Sensor Connector M12 Male Female Straight Assembly

Price Negotiable

Price: 0.5~~1

MOQ: 30

Delivery Time: 5-8 days

Brand: NO MARK

Product Description

P67 IP68 2 3core 4pole 5 8pin PG7 PG9 A B D Coding M12 Female Male cable plug connector M12 Field Plug

Whether angled or straight, CAZN's M12 Connectors for transmission of digital and analog signals enable fully shielded connections from one device to the next in automation technology. Thanks to their optimally secure data transmission and extremely robust design, process reliability and system availability are assured with these connectors. The patented shield concept and mechanically robust construction allow reliable and safe operation, even in harsh industrial environments.

M12 Features & Benefits

1, Find Exactly What You Need: Configuration options include LEDs, field-attachable/receptacles, many pole options and flexibility in cabling

2, Reduce Installation Time: Save time and effort with an easy installation

3, Global Usability: Internationally standardized M12 connector technology with various codings

4, Flexible Designs: Choose between numerous connection possibilities to guarantee a fit for any application

M12 circular connector GPIO cable with CAT5 Lan cable connector M12 4pin 5pin 8pin 12 pin connector

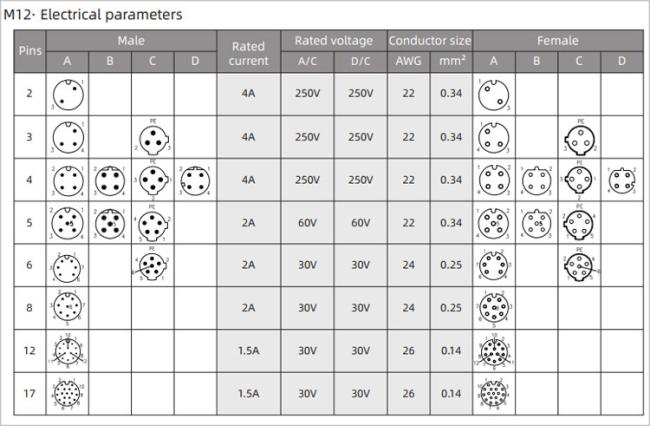

Pins Number: 2 3 4 5 6 8 12 17 pins

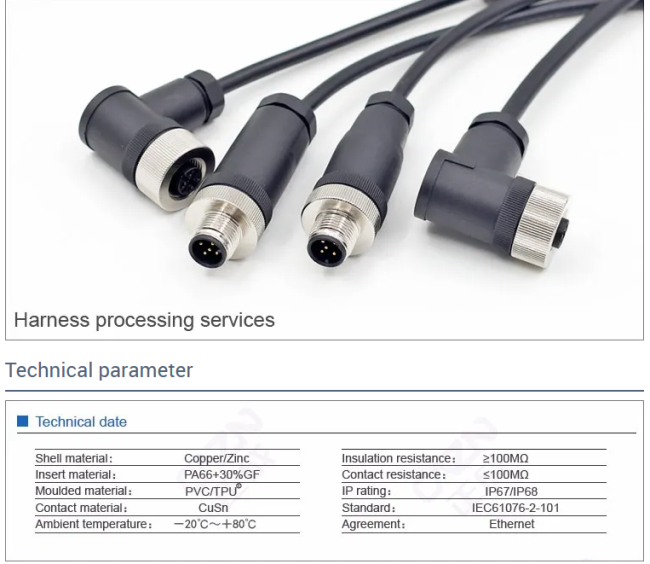

Plug: assembled type, injection molding with cable type (length can be customized at will)
Metal housing connector excellent 360° full shielding,new more damped design
Socket: Front Mount Solder Type, Back Mount Solder Type and PCB Board type
Waterproof grade: Ip65 IP67
Products comply with IEC 61076-2-101 Industry 4.0 agreement,NEMA2000 standard

Field	Value
Model Number	M12-4pin 5pin 8pin 12pin 17pin
Type	Plug - Male Pins Female pin
Place of Origin	Guangdong, China
Brand	no mark
Packaging	CARTON
Description	CONNECTOR
D/C	30V
Number of pins	2pin, 3pin, 4pin, 5pin, 6pin, 8pin
Current Rate	2A
Cording	A/B/D/X
Contact carrier material	PA
Type of connection	Screw / solder connection

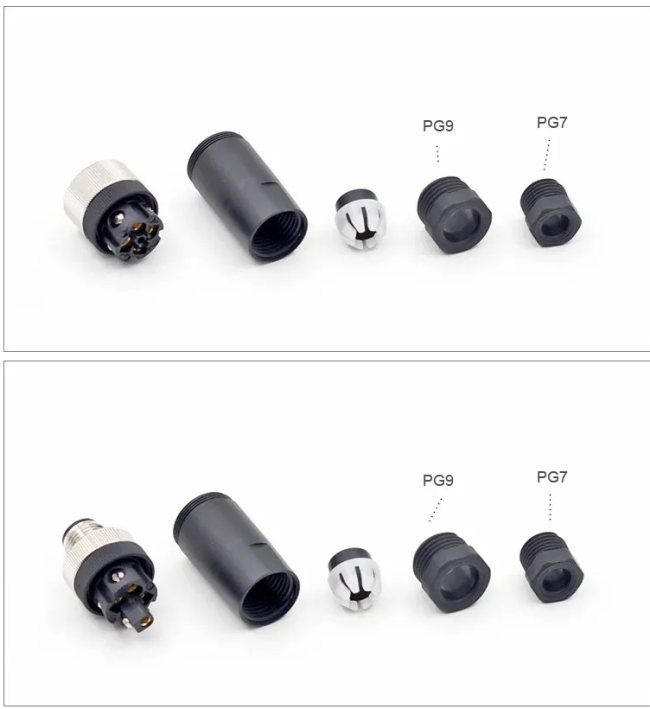

Cable diameter PG7	4~6mm
Cable diameter PG9	6~8mm
Degree of protection	IP67
Gender	Female and Male
