Photoelectric Bearingless Encoder Z100 Hollow Shaft 40mm Slew Speed 5000rpm
Non-bearing encoder Z100 photoelectric optical encoder hollow shaft 40mm Slew speed 5000rpm
Key Feather of Z100 encoder
Encoder type: bearingless encoder
Pulse: Min 2500ppr, Max 10000
Output Phase: ABZUVW
Power supply voltage ； DC5V or DC8-30V
Circuit Signal output: HTL, TTL
Weight : 180 grams
Thickness: 16mm-extra thin
Through hole shaft diameter: Min 40mm, Max 65mm
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
Characteristics of Z100 Series
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | bearingless encoder |
| External diameter | 100mm |
| Thickness | 16mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 40mm;63mm;65mm |
| Resolution | 2500/8；2500/10;2500/16;5000/10;5000/16; |
| 10000/8;10000/10;10000/16 | |
| Output phase | A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8--30V |
| Output mode | Radial cable |
| Radial socket | |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| Cable length | 300mm |
| rise/fall time | less than 1 us(cable length:2 meters) |
| Consumption current | 120mA MAX |
| Top response frequency | 300KHZ |
| GND | not connect to encoder |
| Slew speed | 5000RPM |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+90° |
| Environmental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Material | aluminum alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 180g (with package) |

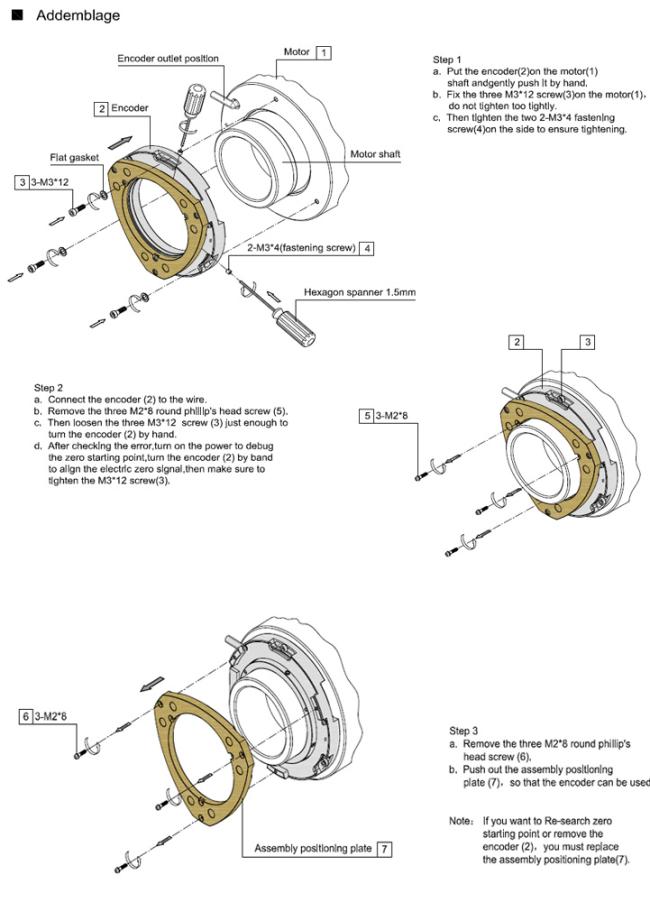

Notice for encoder installation
1. Please read the encoder specification carefully before installation
2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
3. The power supply voltage must be holded within specified range, or encoder could be destroyed.
4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.
6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.
8. The encoder cable signal can’t be drew or bent forcibly.
